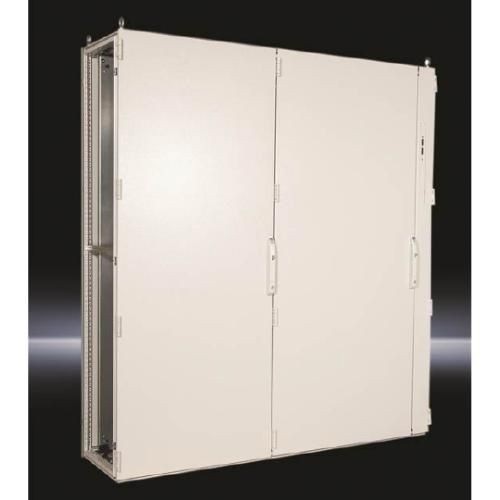

Rittal 9951134 TS8 Compact Disconnect Enclosure, 31 in W x 16 in D x 71 in H, NEMA 12/IP55, Carbon Steel
Rittal 9951134 TS8 Compact Disconnect Enclosure, 31 in W x 16 in D x 71 in H, NEMA 12/IP55, Carbon Steel
SKU: RTL9951134
Manufacturer Part Number: 9951134
UPC: 639889874336
Documents
Features
- Easy to follow installation instructions
- Compatible with all standard TS 8 accessories
- Enhanced and greatly simplified hardware installation
- A rigid trim door to accept a variety of high and low amperage operator handles
- Optional high amperage adapter plate allowing future system upgrade without performing additional cutouts in the field while maintaining Type 12 rating
- Blank adapter plate option for non-disconnect conversions
- Reduced width hinged trim door design for more usable panel mounting space
- Hinged and side access behind the operator handle cutout to make mounting the operator handle and connecting hardware easier
- Expandable and modular enclosure compatible with all standard TS 8 accessories
Specification
| Material | Carbon Steel |
|---|---|
| NEMA Rating | NEMA 12/IP55 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Light Gray |
| Catalog ID | RTL9951134 |
| Standard & Approvals | UL, cUL Listed |
| Application | Commercial and Industrial Applications |
| Width | 31 in |
| Type | Compact Disconnect |
| Series | TS8 |
| Finish | Dipcoat Primed/Powder Coated |
| Depth | 16 |
| Mounting Type | Flange |
| Includes | (1) Operator Handle Interlocking Kit, (1) Enclosure Frame TS8 with Doors, Roof Plate, (1) Rear Panel, Gland Plate, (1) Mounting Plate, (4) Eyebolts, Padlock Comfort Handle, (1) Flange Door with Low Amperage Adapter Plate, (1) 4538000 Ride Up Roller |
