Rittal 4140120 Compact Light, 24 VDC, Electronic Ballast, ABS

Selected Rittal 4140120 Compact Light, 24 VDC, Electronic Ballast, ABS
Rittal 4140120 Compact Light, 24 VDC, Electronic Ballast, ABS

Documents

Features

  • Slimmer, height and depth reduced by around 50%, takes up 75% less volume than conventional lights
  • Faster, universal quick-release fastening at TS punchings using clips, screws or powerful magnets (optional)
  • Easy to insert at the sides or rear
  • Door operated switch connection can be made using 2-pole connector, transparent light cover, fluted on inside
  • IP20 protection
  • -15 to 45 deg C operating temperature
  • 14 W power rating
  • II (total insulation) protection category
  • +/- 10 % voltage tolerance
  • 118 in connection cable
  • Yellow color cable
  • RAL 7035 light gray color

Specification

Material
ABS
Switches
Integral, On/Off/Door Operated Switch
Voltage Rating
24 VDC
Standard & Approvals
EAC Approved
Ballast Type
Electronic
Color
Light Gray
Lamp Type
T5 Fluorescent
Includes

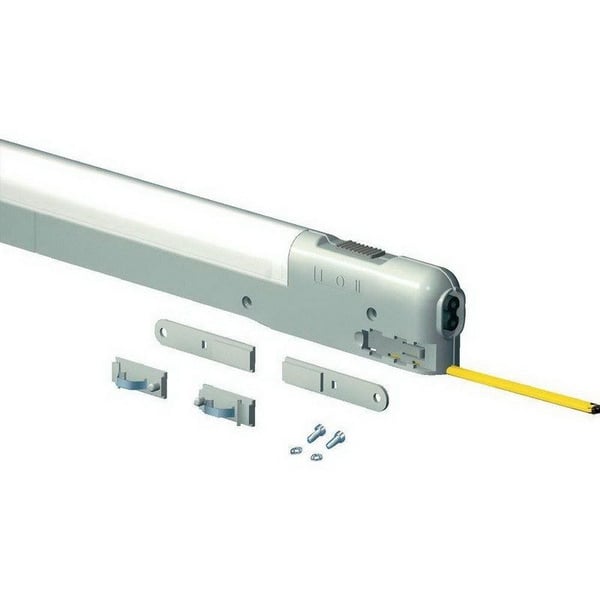

Compact Light with Clip, Screw Mounting Kits, Light (Bulb), Light Cover, Connection Cable, Assembly Components
Dimensions
2.3 in H x 28 in W x 0.94 in D
Amperage Rating
0.57 A
