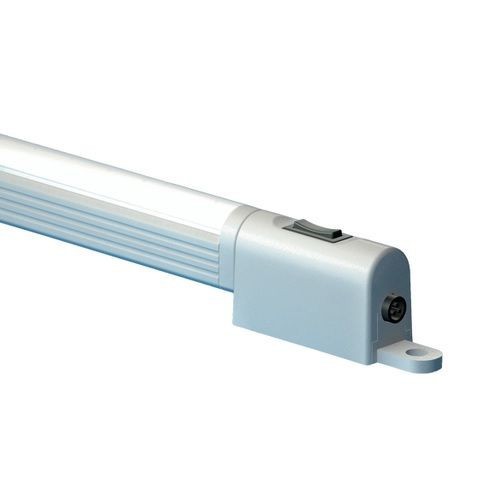

Rittal 4140830 LED Compact System Light, 24 VDC, (30, Aluminum
Rittal 4140830 LED Compact System Light, 24 VDC, (30, Aluminum
SKU: RTL4140830
Manufacturer Part Number: SZ 4140.830
UPC: 639889854314
Documents
Features
- Maximum EMC capacity
- Protected with the safety extra-low voltage range
- Economical energy use
- Low maintenance with the use of LEDs
- May be connected to a door operated switch
- Integral through wiring
- Universal attachment options
- Vertically hinged light cone
- IP20 protection
- III (SELV) protection category
- Cool white bulb
- RAL 7035 light gray color
Specification
| Lamp Type | LED |
|---|---|
| Material | Aluminum |
| Switches | Integral, On/Off/Door Operated Switch |
| Voltage Rating | 24 VDC |
| Standard & Approvals | EAC Approved |
| Amperage Rating | 0.12 A |
| Color | Light Gray |
| Includes | LED Compact System Light, Light (Bulb), Light Cover, Assembly Components |
| Dimensions | 1.3 in H x 17 in W x 0.81 in D |
| Number of Lamps | 30 |
