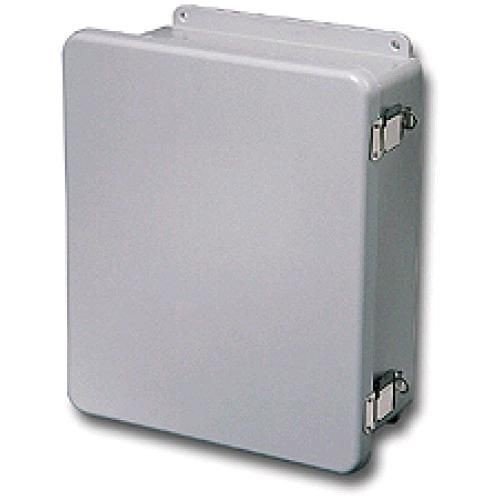

Stahlin J1210HPL Enclosure, 10 in W x 5 in D x 12 in H, NEMA 4X, Fiberglass Reinforced Polyester
Stahlin J1210HPL Enclosure, 10 in W x 5 in D x 12 in H, NEMA 4X, Fiberglass Reinforced Polyester
SKU: STAJ1210HPL
Manufacturer Part Number: J1210HPL
UPC: 785928108754
Documents
Features
- Unobstructed side walls, built in mounting capabilities and the strength characteristics associated with a protective wrap around cover that is hinged, latched or screwed down
- The Stahlin J Series product line was developed as an industrial enclosure for harsh, aggressive environments
- Rugged design combined with tough, durable materials, for extreme reliability in tough environments
- NEMA 1, 3R, 4X, 6P, 12
- Electrical and Instrument
Specification
| Minimum Order Qty | 1 |
|---|---|
| Order Interval | 1 |
| Mounting Type | Wall |
| Cover Type | Opaque Hinged |
| Color | Glacier Gray |
| Width | 10 in |
| Standard & Approvals | cUL Listed, CSA Certified, IEC Standard, RoHS Complaint, UL Listed |
| Temperature Rating | -76 to 274 deg F |
| Depth | 5 in |
| Series | J |
| NEMA Rating | NEMA 4X |
| Lock | Padlocking |
| Length | 12 in |
| Material | Fiberglass Reinforced Polyester |
| Catalog ID | STAJ1210HPL |
