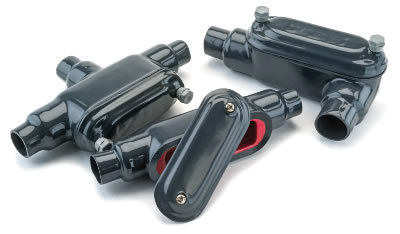

Robroy RedH2OT® PRLB37 Type LB Conduit Body With Cover, 1 in Hub, Form 7 Form, Steel, PVC Coated

Selected IDW IMAGE 8c3eb6a965d2411f1ec00dbd5dc20f5109edb3df6c79e3982bfd27a420c293b3
IDW IMAGE 8c3eb6a965d2411f1ec00dbd5dc20f5109edb3df6c79e3982bfd27a420c293b3

Documents

Short Description

Plasti-Bond RedH2OT® conduit bodies with covers are offered in Form 8 and Form 7 styles, each with numerous configurations to provide a complete coated conduit system. May be used to make 90 deg bends, for pull outlets, to provide for taps or splices, to act as a mounting outlet for wiring devices or lighting fixtures etc. Form 8 style fittings 1/2 to 2 in have an integral V-Seal gasket for superior corrosion protection. Electrical continuity of the conduit system is maintained across assembled joints.

Features

  • 40 mil gray PVC exterior coating
  • Plasti-Bond conduit bodies with covers are offered in form 8 and form 7 styles, each with numerous configurations to provide a complete coated conduit system
  • Sealing sleeves on all conduit openings
  • 10 CRFB sizes from 1/2 through 4 in
  • Form 7 style cover uses retained stainless screw and wedge clip design
  • Form 8 style cover uses plastic encapsulated stainless steel screws with retainers built into covers for CRFB sizes 1/2 in through 2 in
  • 2 mil red urethane interior coating

Specification

Finish
PVC Coated
Form
Form 7
Type
Type LB
Connection Type
Thread
Material
Steel
Color
Gray/Red
Number of Hubs
2
Hub Size
1 in
Dimensions
7.04 in L x 2.92 in W x 1.79 in H
Series
PRLB
