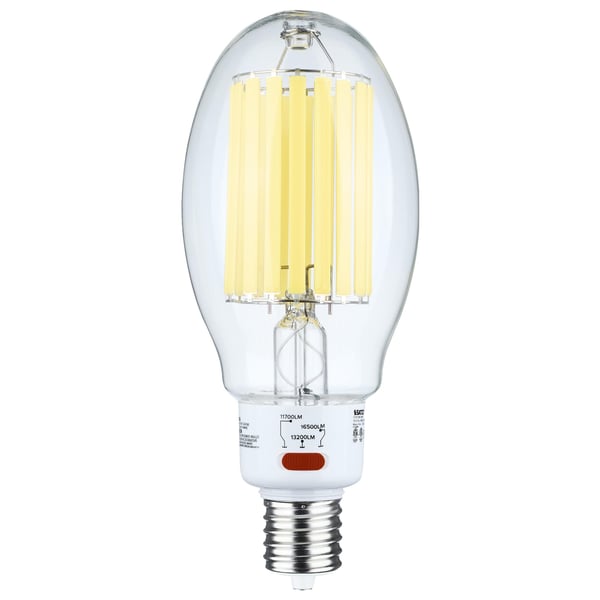

SATCO® S13197 Wet LED HID Replacement, 60, 68, 85 W, EX39 Lamp Base, ED37 Shape, 11700, 13200, 16500 Lumens

Selected SATCO S13197 2
SATCO S13197 2

Documents

Short Description

SATCO NUVO's LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. Offered in a field selectable ED28 model or CCT selectable in ED28 and ED37 models. Designed for use in type B ballast bypass applications, these lamps make the transition to LED lamps easy. Enjoy long-lasting and low-maintenance lighting in warehouses, post top and area lights, gymnasiums and more.|SATCO NUVO's LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. This CCT selectable ED37 model is designed for use in type B ballast bypass applications, to make the transition to LED lamps easy. Enjoy long-lasting and low-maintenance lighting in warehouses, post top and area lights, gymnasiums and more.

Features

  • Wattage Selectable
  • Type B - Ballast Bypass
  • Universal Operating Position
  • Glass Lamp

Specification

Type
Wet
Color Rendering Index (CRI)
80
Lumens
11700, 13200, 16500 Lumens
Wattage
60, 68, 85 W
Average Life
50000 hr
Fixture Type
HID/LED
Beam Angle
360 deg
Dimensions
16.97 in H x 16.97 in W x 13.74 in L
Color
Natural White
Voltage Rating
120 to 277 V
Lamp Finish
Clear
Color Temperature
5000 K
Filament
LED
Lamp Base Type
EX39
Ballast Type
Type B Bypass
Shape
ED37
