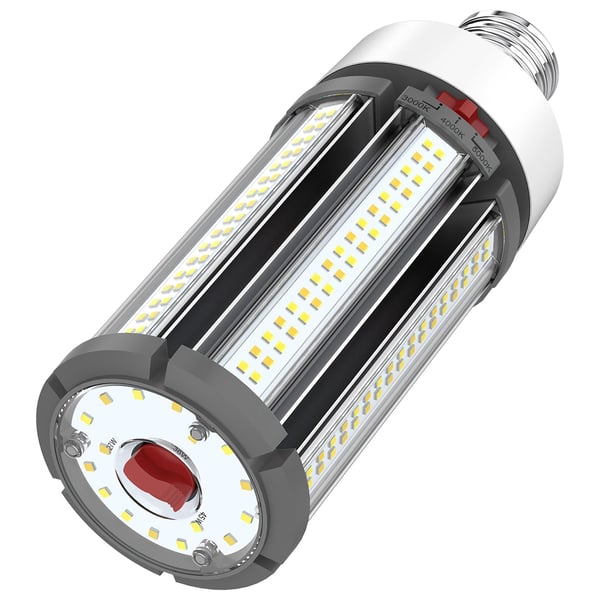

SATCO® S23140 Replacement HID, 45, 36, 27 W, Medium Lamp Base LED Lamp, 6300, 5040, 3780 Lumens

Selected SATCO S23140
SATCO S23140

Documents

Short Description

Satco's wattage and CCT selectable Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Illuminate gymnasiums, factory floors, health clubs, or any venue where high ceilings require superior light output. This versatile lamp is dimmable and designed to deliver clean LED light with a 300 degree beam spread.

Features

  • CCT and wattage selectable via a manual switch on the lamp
  • Advanced passive heat sink design for maximum thermal management
  • ColorQuick selectable color technology
  • PowerQuick wattage selectable
  • Not for use with conventional dimmer switches
  • Dimmable
  • -40 deg C (-40 deg F) to +60 deg C (+140 deg F) Operating Temperature
  • 1.63 lb Weight
  • 175, 150, 125 W HID Equivalent

Specification

Color Temperature
3000 K
Average Life
50000 hr
Lamp Type
LED
Type
Replacement
Color
Clear
Beam Angle
360 deg
Lamp Base Type
Medium
Color Rendering Index (CRI)
80
Fixture Type
Enclosed
Dimensions
9.45 L x 3.35 W x 3.35 Dia in
Lumens
6300, 5040, 3780 Lumens
Wattage
45, 36, 27 W
Lamp Finish
White
Voltage Rating
100 to 277 V
Designation
45W/LED/CCT/100-277V/E26
