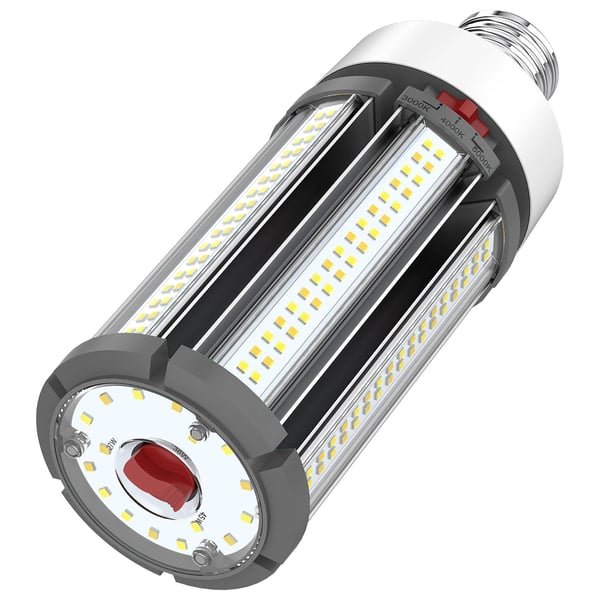

SATCO® S23141 Replacement HID, 45, 36, 27 W, Mogul Extended Lamp Base LED Lamp, 6300, 5040, 3780 Lumens

Selected SATCO S23141
SATCO S23141

Documents

Short Description

Satco's wattage and CCT selectable Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Illuminate gymnasiums, factory floors, health clubs, or any venue where high ceilings require superior light output. This versatile lamp is dimmable and designed to deliver clean LED light with a 300 degree beam spread.

Features

  • CCT and wattage selectable via a manual switch on the lamp
  • Advanced passive heat sink design for maximum thermal management
  • ColorQuick selectable color technology
  • PowerQuick wattage selectable
  • Not for use with conventional dimmer switches
  • Dimmable
  • -40 deg C (-40 deg F) to +60 deg C (+140 deg F) Operating Temperature
  • 1.76 lb Weight
  • 175, 150, 125 W HID Equivalent

Specification

Color Temperature
3000 K
Dimensions
9.69 L x 3.35 W x 3.35 Dia in
Voltage Rating
100 to 277 V
Fixture Type
Enclosed
Lamp Base Type
Mogul Extended
Type
Replacement
Lamp Finish
White
Wattage
45, 36, 27 W
Lumens
6300, 5040, 3780 Lumens
Average Life
50000 hr
Beam Angle
360 deg
Color Rendering Index (CRI)
80
Lamp Type
LED
Designation
45W/LED/CCT/100-277V/EX39
Color
Clear
