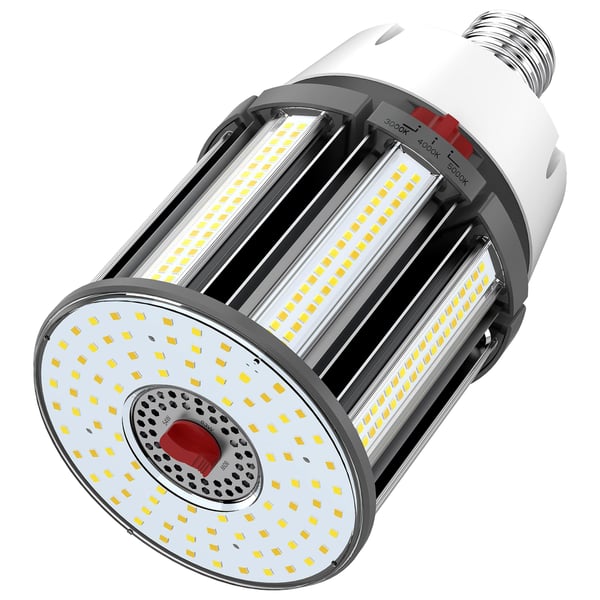

SATCO® S23143 Replacement HID, 80, 63, 54 W, Mogul Extended Lamp Base LED Lamp, 11200, 8820, 7560 Lumens

Selected SATCO S23143
SATCO S23143

Documents

Short Description

Satco's wattage and CCT selectable Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Illuminate gymnasiums, factory floors, health clubs, or any venue where high ceilings require superior light output. This versatile lamp is dimmable and designed to deliver clean LED light with a 300 degree beam spread.

Features

  • CCT and wattage selectable via a manual switch on the lamp
  • Advanced passive heat sink design for maximum thermal management
  • ColorQuick selectable color technology
  • PowerQuick wattage selectable
  • Not for use with conventional dimmer switches
  • Dimmable
  • -40 deg C (-40 deg F) to +60 deg C (+140 deg F) Operating Temperature
  • 2.68 lb Weight
  • 320, 250, 200 W HID Equivalent

Specification

Color
Clear
Lamp Base Type
Mogul Extended
Average Life
50000 hr
Voltage Rating
100 to 277 V
Designation
80W/LED/CCT/100-277V/EX39
Color Temperature
3000 K
Fixture Type
Enclosed
Type
Replacement
Lumens
11200, 8820, 7560 Lumens
Color Rendering Index (CRI)
80
Wattage
80, 63, 54 W
Lamp Finish
White
Dimensions
9.96 L x 5.11 W x 5.11 Dia in
Lamp Type
LED
Beam Angle
360 deg
