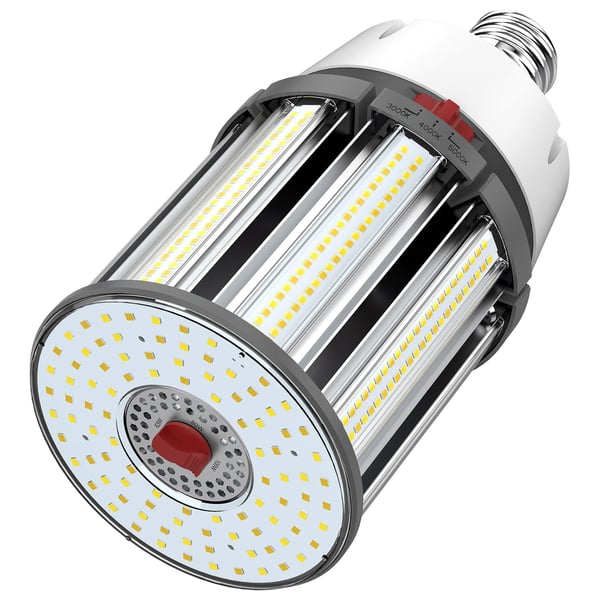

SATCO® S23144 Replacement HID, 100, 80, 63 W, Mogul Extended Lamp Base LED Lamp, 14000, 11200, 8820 Lumens

Selected SATCO S23144
SATCO S23144

Documents

Short Description

Satco's wattage and CCT selectable Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Illuminate gymnasiums, factory floors, health clubs, or any venue where high ceilings require superior light output. This versatile lamp is dimmable and designed to deliver clean LED light with a 300 degree beam spread.

Features

  • CCT and wattage selectable via a manual switch on the lamp
  • Advanced passive heat sink design for maximum thermal management
  • ColorQuick selectable color technology
  • PowerQuick wattage selectable
  • Not for use with conventional dimmer switches
  • Dimmable
  • -40 deg C (-40 deg F) to +60 deg C (+140 deg F) Operating Temperature
  • 3.12 lb Weight
  • 400, 320, 250 W HID Equivalent

Specification

Color
Clear
Color Rendering Index (CRI)
80
Lamp Type
LED
Beam Angle
360 deg
Fixture Type
Enclosed
Type
Replacement
Color Temperature
3000 K
Lamp Finish
White
Lamp Base Type
Mogul Extended
Average Life
50000 hr
Voltage Rating
100 to 277 V
Designation
100W/LED/CCT/100-277V/EX39
Wattage
100, 80, 63 W
Dimensions
10.55 L x 5.11 W x 5.11 Dia in
Lumens
14000, 11200, 8820 Lumens
