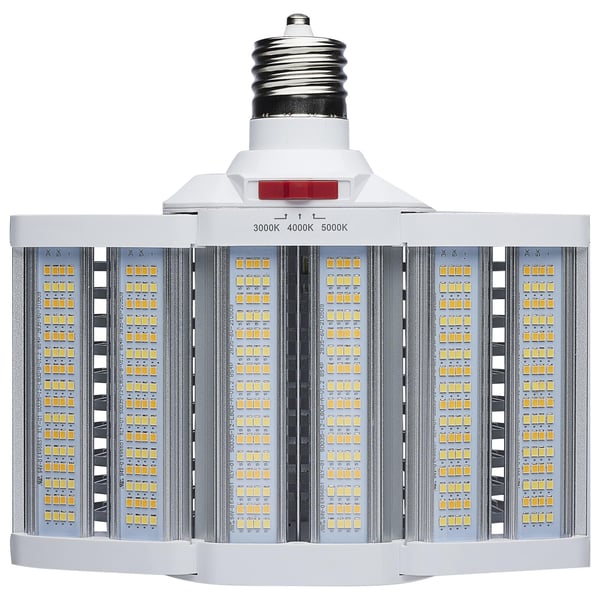

SATCO® S28932R1 Retrofit Fixture, 60/70/80 W, 400 W Incandescent Equivalent, Mogul Extended LED Lamp, 9000/10150/11200 Lumens

Selected SATCO S28932R1
SATCO S28932R1

Short Description

SATCO NUVO's LED Hi-Pro Lamps offer a 320 degree rotating EX39 base making the installation of these lamps easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each unique environment. The notable design of the expandable light panels, when used in its fully open operating position, provides a 180 degree beam angle that enables the user to focus the light distribution exactly where it is needed the most. The outstanding heat dissipation, the ballast bypass feature, and the integrated 4kV surge protection make these the perfect HID replacement for shoebox fixtures and commercial area lighting. An optional 10kV hardwire surge protector is available to provide an additional level of protection when needed.|SATCO NUVO's S28932R1 LED Hi-Pro Lamp offers a 320 degree rotating EX39 base making the installation of this lamp easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each unique environment. The notable design of the expandable light panels, when used in its fully open operating position, provides a 180 degree beam angle that enables the user to focus the light distribution exactly where it is needed the most. The outstanding heat dissipation, the ballast bypass feature, and the integrated 4kV surge protection make this lamp the perfect HID replacement for shoebox fixtures and commercial area lighting. An optional 10kV hardwire surge protector is available to provide an additional level of protection when needed.

Features

  • CCT and Wattage Selectable
  • Expandable Light Panels
  • Integrated 4kV Surge Protection
  • Advanced Heat Dissipation
  • Type B Ballast Bypass

Specification

Ballast Type
Dimmable
Beam Type
Spread
Lamp Base Type
Mogul Extended
Average Life
50000 hr
Amperage Rating
0.500 to 0.217/0.583 to 0.253/0.667 to 0.289 A
Fixture Type
Enclosed
Voltage Rating
120 to 277 V
Color Rendering Index (CRI)
80
Lamp Type
LED
Lamp Finish
White
Dimensions
8.9 in Dia x 8.86 in L
Beam Angle
180 deg
Wattage
60/70/80 W
Color
Soft White to Natural Light
Lumens
9000/10150/11200 Lumens
Designation
80W/LED/HID/SB/3CCT/EX39
Incandescent Equivalent
400 W
Color Temperature
3000/4000/5000 K
