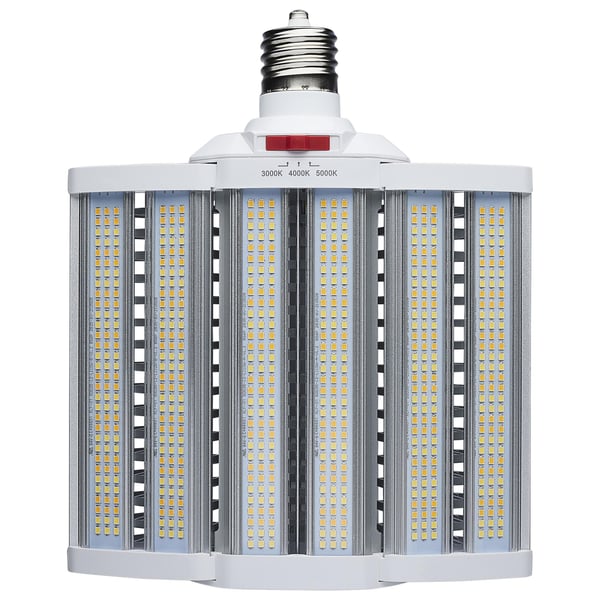

SATCO® S28938R1 Retrofit Fixture, 90/100/110 W, 750 W Incandescent Equivalent, Mogul Extended LED Lamp, 13500/14500/15400 Lumens

Selected SATCO S28938R1
SATCO S28938R1

Short Description

SATCO NUVO's LED Hi-Pro Lamps offer a 320 degree rotating EX39 base making the installation of these lamps easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each unique environment. The notable design of the expandable light panels, when used in its fully open operating position, provides a 180 degree beam angle that enables the user to focus the light distribution exactly where it is needed the most. The outstanding heat dissipation, the ballast bypass feature, and the integrated 4kV surge protection make these the perfect HID replacement for shoebox fixtures and commercial area lighting. An optional 10kV hardwire surge protector is available to provide an additional level of protection when needed.|SATCO NUVO's S28938R1 LED Hi-Pro Lamp offers a 320 degree rotating EX39 base making the installation of this lamp easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each unique environment. The notable design of the expandable light panels, when used in its fully open operating position, provides a 180 degree beam angle that enables the user to focus the light distribution exactly where it is needed the most. The outstanding heat dissipation, the ballast bypass feature, and the integrated 4kV surge protection make this lamp the perfect HID replacement for shoebox fixtures and commercial area lighting. An optional 10kV hardwire surge protector is available to provide an additional level of protection when needed.

Features

  • CCT and Wattage Selectable
  • Expandable Light Panels
  • Integrated 4kV Surge Protection
  • Advanced Heat Dissipation
  • Type B Ballast Bypass

Specification

Lamp Type
LED
Lamp Finish
White
Ballast Type
Dimmable
Color Rendering Index (CRI)
80
Lamp Base Type
Mogul Extended
Voltage Rating
120 to 277 V
Beam Type
Spread
Fixture Type
Enclosed
Average Life
50000 hr
Color
Soft White to Natural Light
Dimensions
8.9 in Dia x 11.26 in L
Lumens
13500/14500/15400 Lumens
Color Temperature
3000/4000/5000 K
Incandescent Equivalent
750 W
Designation
110W/LED/HID/SB/3CCT/EX39
Wattage
90/100/110 W
Amperage Rating
0.750 to 0.325/0.833 to 0.361/0.917 to 0.397 A
Beam Angle
180 deg
