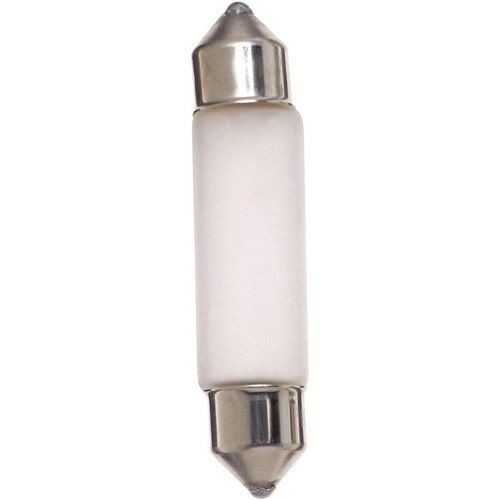

SATCO® S6990 Miniature Lamp, 10 W, Festoon SV8.5-8 Xenon Lamp, T1.75 Shape, 120 Lumens Initial

Selected SATCO® S6990 Miniature Lamp, 10 W, Festoon SV8.5-8 Xenon Lamp, T1.75 Shape, 120 Lumens Initial
SATCO® S6990 Miniature Lamp, 10 W, Festoon SV8.5-8 Xenon Lamp, T1.75 Shape, 120 Lumens Initial

Documents

Short Description

Satco miniatures are perfectly suited for those applications requiring specific sizes and a long lifespan. Miniature bulbs are, by definition, generally small in size and find their way into many applications and are available in a wide variety of filament constructions, bases, and wire terminal leads. Most are designed for operation with low voltage power sources such as battery/generator systems, dry cell or storage batteries, or transformers. Most common uses include flashlights, indicator lights, landscape lights, and appliances.

Features

  • Special application miniature lam
  • Low wattage
  • Long life

Specification

Lamp Base
Festoon SV8.5-8
Lamp Finish
Frosted
Lamp Type
Xenon
Lumens
120 Lumens
Minimum Order Qty
1
Order Interval
1
Amperage Rating
0.74 A
Average Life
20000 hr
Beam Type
Sealed
Catalog ID
SATS6990
Designation
X10T3 1/4 F Festoon
Dimensions
0.41 in Dia x 1.72 in L
Filament
C-8
Shape
T3 1/4
Voltage Rating
12 VAC
Wattage
10 W
Standard & Approvals
RoHS Compliant
