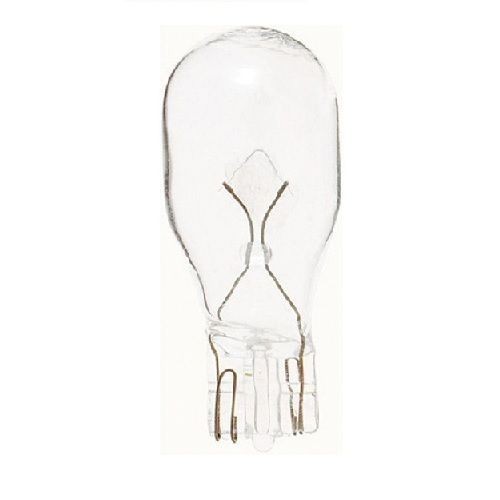

SATCO® S7101 Miniature Lamp, 5.4 W, W2.1x9.5d Miniature Wedge Incandescent Lamp, T5 Shape, 5.4 Lumens Initial

Selected SATCO® S7101 Miniature Lamp, 5.4 W, W2.1x9.5d Miniature Wedge Incandescent Lamp, T5 Shape, 5.4 Lumens Initial
SATCO® S7101 Miniature Lamp, 5.4 W, W2.1x9.5d Miniature Wedge Incandescent Lamp, T5 Shape, 5.4 Lumens Initial

Documents

Short Description

Satco miniatures are perfectly suited for those applications requiring specific sizes and a long lifespan. Miniature bulbs are, by definition, generally small in size and find their way into many applications and are available in a wide variety of filament constructions, bases, and wire terminal leads. Most are designed for operation with low voltage power sources such as battery/generator systems, dry cell or storage batteries, or transformers. Most common uses include flashlights, indicator lights, landscape lights, and appliances.

Features

  • Special application miniature lam
  • Low wattage
  • Long life

Specification

Lamp Base
Mini Wedge W2.1x9.5d
Lamp Finish
Clear
Lamp Type
Halogen
Lumens
5.4 Lumens
Shape
T5
Voltage Rating
6 VAC
Wattage
5.4 W
Application
Emergency Light Application
Standard & Approvals
RoHS Compliant
Amperage Rating
0.9 A
Dimensions
0.63 in Dia x 1.5 in L
Average Life
50
Beam Type
Sealed
Color
Warm White
Color Temperature
2700
Designation
939
Filament
C-2R
