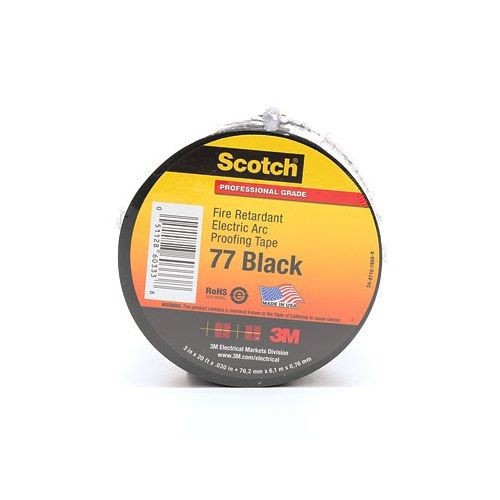

Scotch® 051128-60333 Fire Retardant Premium Grade Electrical Tape, 20 ft L x 3 in W x 30 mil THK, Black

Selected 77 Black-3x20FTScotch® 051128-60333 Fire Retardant Premium Grade Electrical Tape, 20 ft L x 3 in W x 30 mil THK, Black
77 Black-3x20FTScotch® 051128-60333 Fire Retardant Premium Grade Electrical Tape, 20 ft L x 3 in W x 30 mil THK, Black

Features

  • Flexible unsupported elastomer makes it easy to apply and remove for cable inspection
  • Conformability provides virtually wrinkle free wrapping and complete coverage with minimal effort
  • Provides fault arc protection to adjacent wrapped cables and cable accessories
  • Self-extinguishing; will not support combustion
  • Thin cross section 30 mils thickness saves space and allows cable heat to dissipated
  • Will last and maintain Its arc proofing properties for the life of the cable
  • Resistant to water, salt water, acids, sewage and ultraviolet light
  • Can be removed and reused
  • Standard roll sizes for fast convenient installation
  • White gray color of Scotch™ Tape 77 White allows for the easy identification of fire damage areas
  • To arc proof high-energy power cables that may be exposed to arc-fault generated heat and flames from nearby failures of other high-energy cables (any cables within 20 inches are considered to be exposed)
  • 150 percent at 23 deg C, 130 percent at -12 deg C, 90 percent at -18 deg C elongation
  • Lesser Than 10000 V dielectric breakdown

Specification

Length
20 ft
Minimum Order Qty
1
Order Interval
1
Color
Black
Width
3 in
Standard & Approvals
RoHS Compliant
Catalog ID
3-M77-BLACK-3X20FT
Backing Material
Intumescent Elastomer
Adhesive Material
Non-Adhesive
Application
For arc proof control cable when high energy power cables are present, To provide additional electrical insulation, thus reducing possibilities of transferred arcs
Type
Fire Retardant Premium Grade
Thickness
30 mil
Tensile Strength
1200 psi
Shape
Roll
