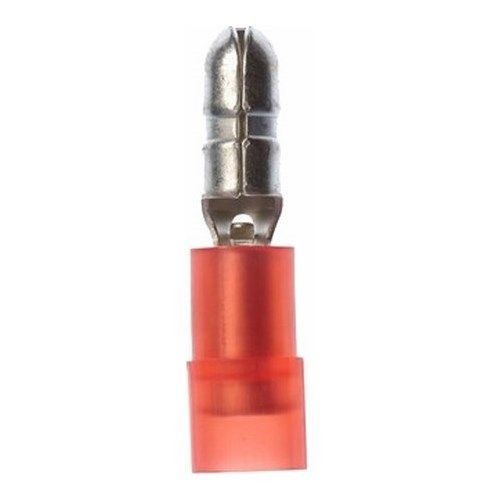

Scotchlok™ 7100165173 Insulated Male Disconnect, 22 to 18 AWG Conductor, 0.91 in L Insulation Grip Barrel, ETP Copper/Nylon, Red
Scotchlok™ 7100165173 Insulated Male Disconnect, 22 to 18 AWG Conductor, 0.91 in L Insulation Grip Barrel, ETP Copper/Nylon, Red
SKU: 3-MMNG18-156DMK
Manufacturer Part Number: 7100165173
UPC: 051138980887
Documents
Features
- Attached to mating part by tongue of female part slipping over male tab
- Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect, male connection
Specification
| Specifications | 0.87 in OAL |
|---|---|
| Temperature Rating | -40 to 221 deg F |
| Type | Bullet Style Insulated Snap Plug |
| Voltage Rating | 600 VAC |
| Standard & Approvals | CSA Certified, RoHS Compliant, UL Listed |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | 3-MMNG18-156DMK |
| Color | Red |
| Conductor Size | 22 to 18 AWG |
| Conductor Type | Copper |
| Dimensions | 0.156 in W Pad |
| Finish | Tin Plated |
| Material | ETP Copper/Nylon |
| Barrel Type | 0.91 in L Insulation Grip |
