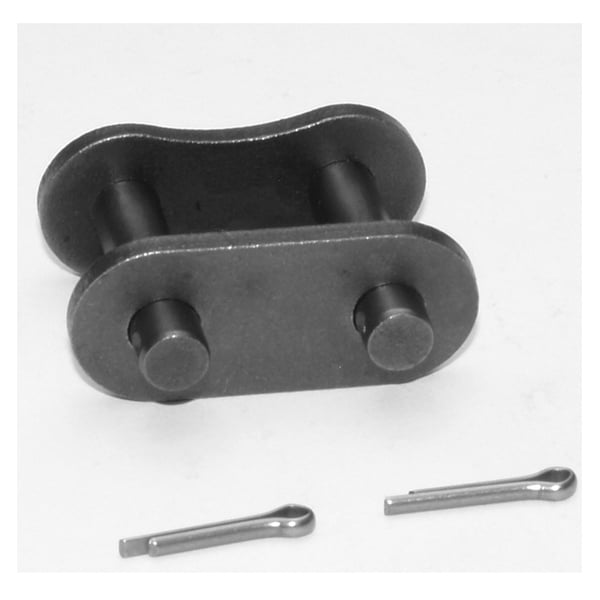

SENQCIA Inspire Series™ SBR® 160HCL Heavy Series Single Strand Cotter Pin Connecting Link, 160H Chain, 2 in Pitch, 2.87 in OAW, 0.562 in Dia Pin, Carbon Steel

Selected Senqcia Maxco 160HCL
Senqcia Maxco 160HCL

Short Description

SENQCIA Inspire Series™ SBR® Heavy Series cotter type connecting links are manufactured in Japan in accordance with the ASME/ANSI B29.1 American roller chain standard. They offer exceptional performance and long life in a wide variety applications. The link plates of the Heavy Series are one size thicker than standard roller chains providing additional strength in heavy duty applications. Split cotters are supplied with slip fit closing plates for ease of assembly in the field. Closing plates are flat style to improve fatigue strength. Connecting links are used to connect the ends of the roller chain strand into an endless loop. Each connecting link is individually packaged in a sealed plastic bag.

Specification

Material
Carbon Steel
Chain Size
160H
Pin Diameter
0.562 in
Link Plate Height
1.839 in
Type
Single Strand Cotter Pin
Overall Width
2.87 in
Link Plate Thickness
0.283 in
Series
Heavy Series
Pitch
2 in
