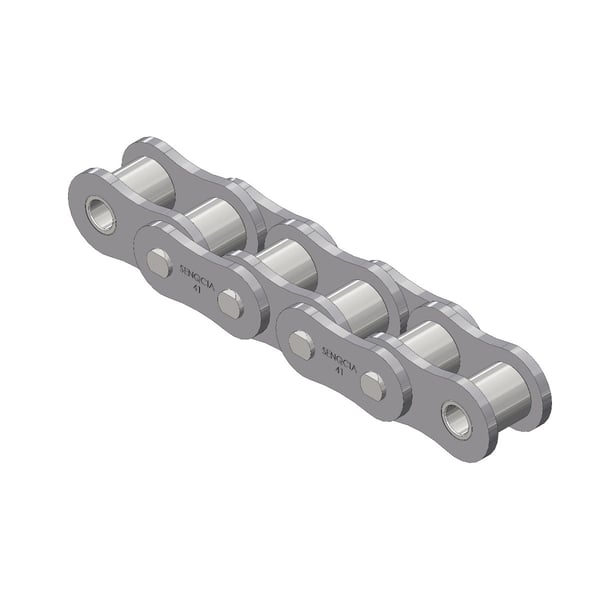

SENQCIA Inspire Series™ SBR® 41RB Riveted Standard Roller Chain, 10 ft OAL, 1/2 in Pitch, 0.306 in Dia x 1/4 in W Roller, Carbon Steel

Selected Senqcia Maxco 41RB
Senqcia Maxco 41RB

Short Description

SENQCIA Inspire Series™ SBR® riveted roller chain is manufactured in Japan in accordance with the ASME/ANSI B29.1 American roller chain standard. These chains offer exceptional performance and long life in a wide variety of applications. Note that this particular size is considered a light duty chain. Packaged chains are pre-lubricated with high quality wax-type grease and come with a necessary connecting link to join the ends. Offset links (used to shorten or lengthen a chain strand by 1 pitch) are also available and sold separately. This chain is packaged in a 10 ft box.

Features

  • Higher rated working loads
  • Improved wear and abrasion resistance
  • New boron steel pins for most sizes that increase strength and improve ductility
  • Proprietary stainless steel blast for link plates and rollers to protect against rust
  • Unique triple zone hardness on chain pins
  • Wide waist link plates
  • Redesigned high strength connecting link with flat style closing plates
  • Superior special blend pre-lubricant

Specification

Roller Width
1/4 in
Number of Strands
1
Overall Length
10 ft
Material
Carbon Steel
NumberofLinks
240
Plate Thickness
0.05 in
Pitch
1/2 in
Tensile Strength
2600 lb Average
Pin Length
0.52 in
Plate Height
0.382 in
Roller Diameter
0.306 in
Pin Diameter
0.141 in
Type
Riveted Standard
