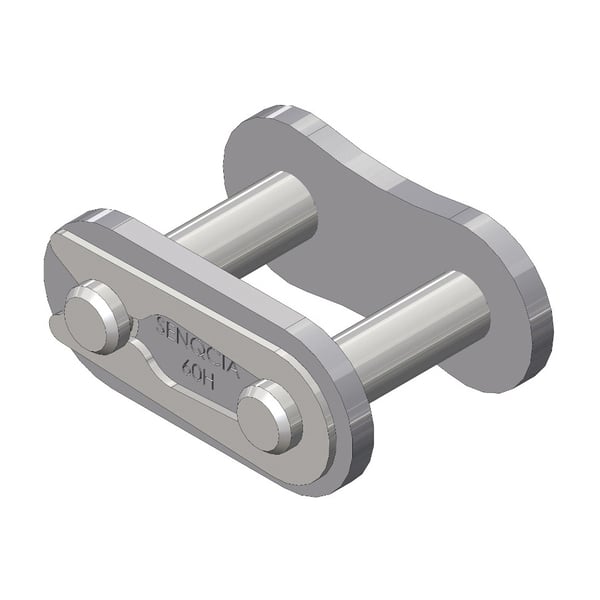

SENQCIA Inspire Series™ SBR® 60HCL Heavy Series Single Strand Spring Clip Connecting Link, 60H Chain, 3/4 in Pitch, 1.21 in OAW, 0.234 in Dia Pin, Carbon Steel

Selected Senqcia Maxco 60HCL
Senqcia Maxco 60HCL

Short Description

SENQCIA Inspire Series™ SBR® Heavy Series spring clip type connecting links are manufactured in Japan in accordance with the ASME/ANSI B29.1 American roller chain standard. They offer exceptional performance and long life in a wide variety applications. The link plates of the Heavy Series are one size thicker than standard roller chains providing additional strength in heavy duty applications. Spring clips are supplied with slip fit closing plates for ease of assembly in the field. Closing plates are flat style to improve fatigue strength. Connecting links are used to connect the ends of the roller chain strand into an endless loop. Each connecting link is individually packaged in a sealed plastic bag.

Specification

Type
Single Strand Spring Clip
Material
Carbon Steel
Pitch
3/4 in
Series
Heavy Series
Link Plate Height
0.689 in
Chain Size
60H
Overall Width
1.21 in
Link Plate Thickness
0.126 in
Pin Diameter
0.234 in
