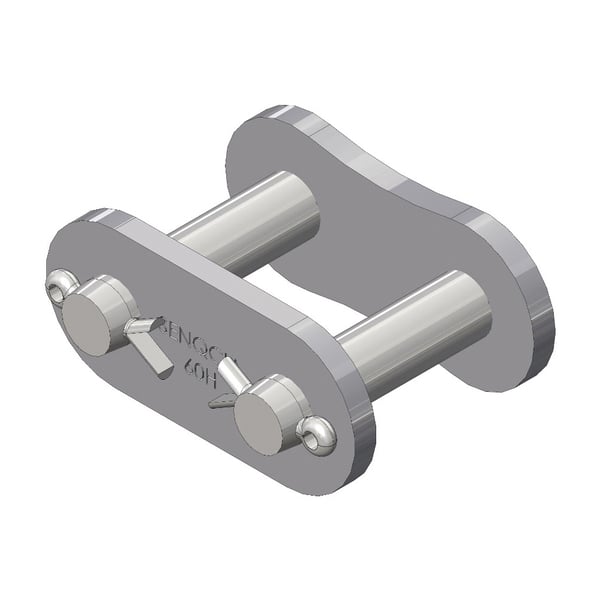

SENQCIA Inspire Series™ SBR® 60HCLCP Heavy Series Single Strand Cotter Pin Connecting Link, 60H Chain, 3/4 in Pitch, 1.21 in OAW, 0.234 in Dia Pin, Carbon Steel

Selected Senqcia Maxco 60HCLCP
Senqcia Maxco 60HCLCP

Short Description

SENQCIA Inspire Series™ SBR® Heavy Series cotter type connecting links are manufactured in Japan in accordance with the ASME/ANSI B29.1 American roller chain standard. They offer exceptional performance and long life in a wide variety applications. The link plates of the Heavy Series are one size thicker than standard roller chains providing additional strength in heavy duty applications. Split cotters are supplied with slip fit closing plates for ease of assembly in the field. Closing plates are flat style to improve fatigue strength. Connecting links are used to connect the ends of the roller chain strand into an endless loop. Each connecting link is individually packaged in a sealed plastic bag.

Specification

Material
Carbon Steel
Overall Width
1.21 in
Link Plate Height
0.689 in
Chain Size
60H
Link Plate Thickness
0.126 in
Pin Diameter
0.234 in
Type
Single Strand Cotter Pin
Pitch
3/4 in
Series
Heavy Series
