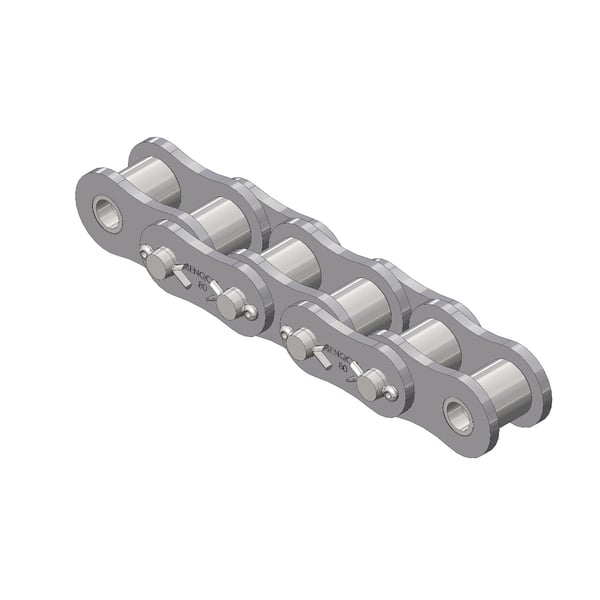

SENQCIA Inspire Series™ SBR® 80CB Cottered Standard Roller Chain, 10 ft OAL, 1 in Pitch, 5/8 in Dia x 5/8 in W Roller, Carbon Steel

Selected Senqcia Maxco 80CB
Senqcia Maxco 80CB

Short Description

SENQCIA Inspire Series™ SBR® cottered roller chain is manufactured in Japan in accordance with the ASME/ANSI B29.1 American roller chain standard. These solid bushing/solid roller chains offer exceptional performance and long life in a wide variety of applications. Chain pins are produced from a special boron steel to improve strength. Solid cold forged bushings and a patented pin treatment extend chain wear life and greatly reduce break-in wear. Cottered chains are generally specified for larger pitch sizes when field assembly or disassembly is anticipated. Packaged chains are pre-lubricated with high quality wax-type grease and come with a necessary connecting link to join the ends. Offset links (used to shorten or lengthen a chain strand by 1 pitch) are also available and sold separately. This chain is packaged in a 10 ft box.

Features

  • Higher rated working loads
  • Improved wear and abrasion resistance
  • New boron steel pins for most sizes that increase strength and improve ductility
  • Proprietary stainless steel blast for link plates and rollers to protect against rust
  • Unique triple zone hardness on chain pins
  • Wide waist link plates
  • Redesigned high strength connecting link with flat style closing plates
  • Superior special blend pre-lubricant

Specification

Pin Diameter
0.312 in
Material
Carbon Steel
Pin Length
1.29 in
Pitch
1 in
Tensile Strength
17650 lb Average
Roller Diameter
5/8 in
Number of Strands
1
Plate Thickness
0.126 in
Roller Width
5/8 in
Overall Length
10 ft
Plate Height
0.921 in
NumberofLinks
120
Type
Cottered Standard
