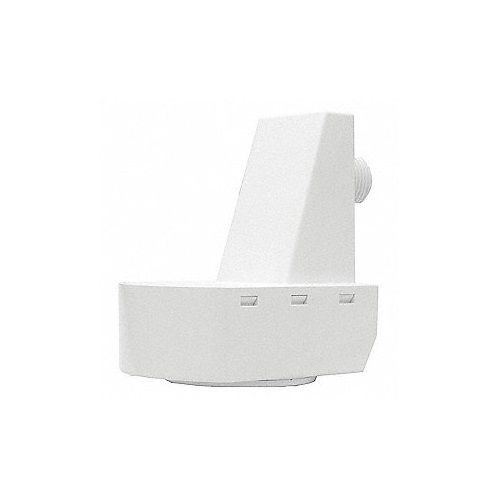

Sensor Switch™ LSXR 610 Indoor Fixture Mount Occupancy Sensor, 120/208/240/277 VAC, PIR Sensor, 360 deg, Fixture Mount

Selected Sensor Switch™ LSXR 610 Indoor Fixture Mount Occupancy Sensor, 120/208/240/277 VAC, PIR Sensor, 360 deg, Fixture Mount
Sensor Switch™ LSXR 610 Indoor Fixture Mount Occupancy Sensor, 120/208/240/277 VAC, PIR Sensor, 360 deg, Fixture Mount

Documents

Short Description

The LSXR is a line voltage fixture mount sensor that provides passive infrared (PIR) occupancy detection with a radial coverage pattern. The LSXR has 4 available interchangeable lenses that provide flexibility in selection of mounting heights and coverage patterns.

Features

  • Interchangeable lenses
  • Integrated mounting bracket
  • Self-contained relay
  • No minimum load requirements
  • Adjustable fixture mounting
  • Compatible with 0-10 VDC dimmable ballasts and LED drivers
  • Interchangeable Hot and Load Wires
  • Features patented Lampmaximizer® technology
  • 10 VDC maximum dim level
  • 14 in L lead
  • Single relay

Specification

Lamp Type
Fluorescent
Mounting Type
High/Low
Minimum Order Qty
1
Order Interval
1
Catalog ID
LITLSXR-610
Color
White
Connection Type
2-Phase Line
Coverage
360 deg
Dimensions
3-3/4 in H x 2-1/2 in W x 4 in D
Sensor Type
Passive Infrared
Temperature Rating
-10 to 60 deg C
Time Delay
10
Type
Indoor
Voltage Rating
120/208/240/277 VAC
Includes
High Mount 360 deg and Low Mount 360 deg Lens
