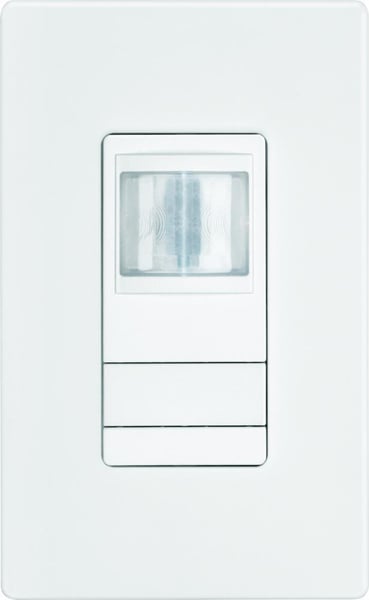

Sensor Switch™ WSXA WH WSXA Wall Switch Occupancy Sensors, 120 to 277 V AC
Selected Sensor Switch WSXA WH
Sensor Switch™ WSXA WH WSXA Wall Switch Occupancy Sensors, 120 to 277 V AC
SKU: LITWSXA-WH
Manufacturer Part Number: WSXA WH
Features
- All WSXA Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private restrooms, closets, copy rooms, or any other small enclosed space
- WIRING - WSXA Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection
- COMPATIBILITY - Compatible with LEDs, electronic and magnetic ballasts, CFLs, and incandescents
- DIMMING - Compatible with 0-10V dimming luminaries
- PROTECTION - Mis-wire Protection - interchangeable line and load wires prevent damage to device if line voltage is mis-wired to 0-10V wires
- POWER - Device accommodates powering over ground or neutral connection (patent pending) Ultra-low current leakage (less than 0.5 mA) when connected via ground
- PROGRAMMABLE - Push-button programmable without removing cover plate - adjustable time delays and operating modes
Specification
| Color | White |
|---|---|
| Dimensions | 2.74 in H x 1.68 in W x 1.63 in D |
| Voltage Rating | 120 to 277 V AC |
| Series | WSXA |
| Temperature Rating | 32 to 140 deg F |
