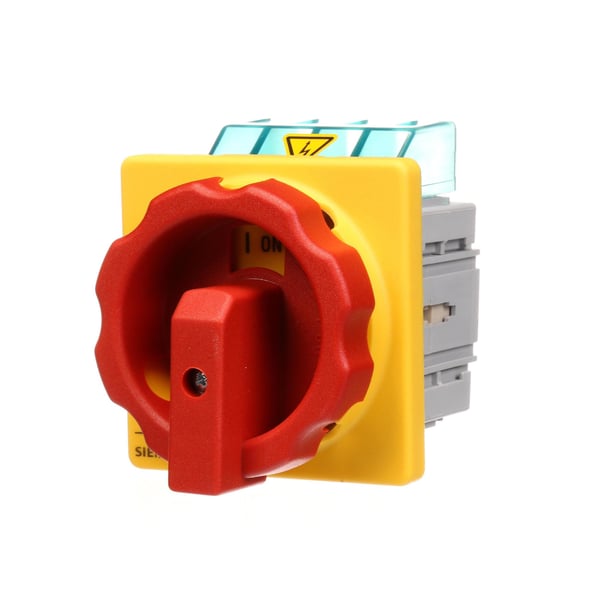

Sentron™ Sentron® 3LD2003-0TK53 Disconnect Switch, 690 VAC, 16 A, 3 Poles

Selected Sentron 3LD2003 0TK53
Sentron 3LD2003 0TK53

Documents

Short Description

The 3LD2 main control and emergency stop switches represent safety oriented switching devices which can be employed in multiple applications in accordance with the EN 60204 machinery directive. They are suitable for switching main and auxiliary circuits as well as three phase motors and other consumers in maintenance or repair cases.

Features

  • 3LD2 type switches are pad lockable in the OFF position
  • For OEM disconnects

Specification

Dimensions
2.8 x 3.2 x 3.7 in
Amperage Rating
16 A
Enclosure Type
IP65
Frequency Rating
50/60 Hz
Series
3LD
Temperature Rating
-20 to 120 deg F
Mounting Type
4-Hole/Front
Voltage Rating
690 VAC
Short Circuit Current Rating
50 kA
Actuator Type
Rotary Knob
Number Of Poles
3
Color
Red/Yellow Handle
Terminal Type
Box
