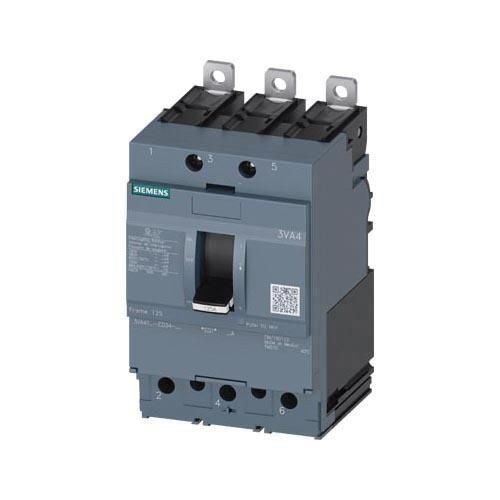

Sentron™ 3VA41956ED340AA0 Low Voltage Molded Case Circuit Breaker, 600 Y/347 VAC, 15 A, 25 kA at 600 Y/347 V, 65 kA at 480 V, 65 kA at 480 Y/277 V, 100 kA at 240 V Interrupt, 3 Poles, TM210 Thermal Magnetic Trip
Sentron™ 3VA41956ED340AA0 Low Voltage Molded Case Circuit Breaker, 600 Y/347 VAC, 15 A, 25 kA at 600 Y/347 V, 65 kA at 480 V, 65 kA at 480 Y/277 V, 100 kA at 240 V Interrupt, 3 Poles, TM210 Thermal Magnetic Trip
SKU: SIE3VA41956ED340AA0
Manufacturer Part Number: 3VA41956ED340AA0
EAN: 4042948823491
UPC: 804766943546
Documents
Features
- Without auxiliary releases and auxiliary alarm switches
Specification
| Temperature Rating | -25 to 70 deg C |
|---|---|
| Trip Range | 300 A |
| Trip Type | TM210 Thermal Magnetic |
| Type | Low Voltage |
| Voltage Rating | 600 Y/347 VAC |
| Wire Size | (1) 14 to 8 AWG |
| Standard & Approvals | EAC Compliant, ECCN EAR99, IEC 81346-2 Q, REACH Compliant, RoHS Compliant, RCM Certified, UL Listed, WEEE 2012/19/EU |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Catalog ID | SIE3VA41956ED340AA0 |
| Connection Type | Aluminum Wire/Load Side |
| Dimensions | 3 in W x 3 in D x 5.1 in H |
| Enclosure Type | IP40 |
| Frame | 3VA41 125 A |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 25 kA at 600 Y/347 V, 65 kA at 480 V, 65 kA at 480 Y/277 V, 100 kA at 240 V |
| Number Of Poles | 3 |
| EANUCC13 | 4042948823491 |
