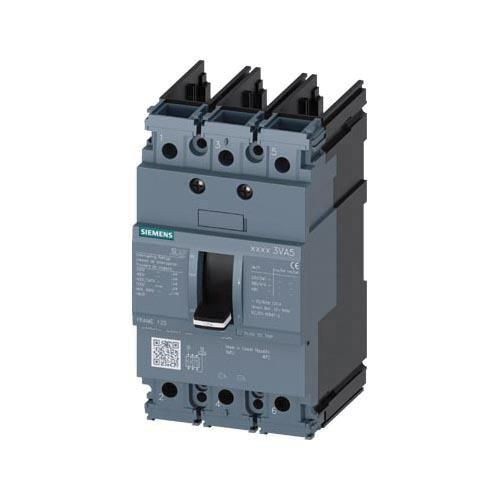

Siemens 3VA5190-5ED31-0AA0 Molded Case Circuit Breaker, 690 VAC/500 VDC, 90 A, 35 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Selected 3VA51954ED310AA0Siemens 3VA5190-5ED31-0AA0 Molded Case Circuit Breaker, 690 VAC/500 VDC, 90 A, 35 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
3VA51954ED310AA0Siemens 3VA5190-5ED31-0AA0 Molded Case Circuit Breaker, 690 VAC/500 VDC, 90 A, 35 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Documents

Short Description

Siemens new 3VA Molded Case Circuit Breakers offer safe, efficient and variable application options for low and medium voltage power distribution whether in industrial applications, infrastructure or buildings. The 3VA range of Molded Case Circuit Breakers provides UL frame sizes covering 125 A to 1000 A with the 3VA5 (thermal magnetic trip unit) and 3VA6 (electronic trip unit) models, as well as IEC frame sizes covering 100 A to 630 A with the 3VA1 and 3VA2 models.

Features

  • Compliance with global standards and certifications
  • Minimum space requirement thanks to the compact design
  • Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
  • Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
  • Minimal effort for planning and configuration as a result of extensive CAD data
  • Knowledge manager- technical information on a specific device can be accessed directly via QR code
  • Without auxiliary releases and auxiliary alarm switches
  • Without lug terminal

Specification

Frame
3VA51 125 A
Frequency Rating
50/60 Hz
Interrupt Rating
18 kA at 600 Y/347 V, 35 kA at 480 V, 85 kA at 240 V
Number Of Poles
3
Temperature Rating
-25 to 70 deg C
Trip Range
900 A
Trip Type
TM210 Thermal Magnetic
Type
Low Voltage
Voltage Rating
600 VAC/500 VDC
Application
Hospitals, Logistics Centers, Office Complexes, Airports, Residential Buildings, Machine Building, Industrial Parks, Presses, Wastewater Treatment, Facilities, Production Lines, Production and Process Automation Industrial Applications
Standard & Approvals
cULus Listed, CE Certified, CSA Certified, CCC Certified, EAC Compliant, ECCN EAR99, IEC 81346-2 Q, REACH Compliant, RoHS Compliant, RCM Certified, UL Listed, VDE Certified, WEEE 2012/19/EU
Amperage Rating
125 A
Dimensions
3 in W x 3 in D x 5-1/2 in H
EANUCC13
4042948841211
Enclosure Type
IP40
