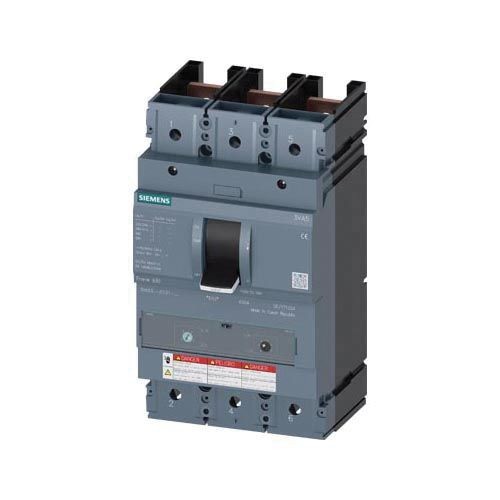

Sentron™ 3VA53306EC310AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC/500 VDC, 300 A, 25 kA at 600 V, 65 kA at 480 V, 100 kA at 240 V Interrupt, 3 Poles, TM230 Thermal Magnetic Trip

Selected 3VA53306EC310AA0Sentron™ 3VA53306EC310AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC/500 VDC, 300 A, 25 kA at 600 V, 65 kA at 480 V, 100 kA at 240 V Interrupt, 3 Poles, TM230 Thermal Magnetic Trip
3VA53306EC310AA0Sentron™ 3VA53306EC310AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC/500 VDC, 300 A, 25 kA at 600 V, 65 kA at 480 V, 100 kA at 240 V Interrupt, 3 Poles, TM230 Thermal Magnetic Trip

Documents

Short Description

Siemens new 3VA Molded Case Circuit Breakers offer safe, efficient and variable application options for low and medium voltage power distribution whether in industrial applications, infrastructure or buildings. The 3VA range of Molded Case Circuit Breakers provides UL frame sizes covering 125 A to 1000 A with the 3VA5 (thermal magnetic trip unit) and 3VA6 (electronic trip unit) models, as well as IEC frame sizes covering 100 A to 630 A with the 3VA1 and 3VA2 models.

Features

  • Compliance with global standards and certifications
  • Minimum space requirement thanks to the compact design
  • Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
  • Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
  • Minimal effort for planning and configuration as a result of extensive CAD data
  • Knowledge manager- technical information on a specific device can be accessed directly via QR code
  • Without auxiliary releases and auxiliary alarm switches
  • Without lug terminal

Specification

Frame
3VA53 400 A
Frequency Rating
50/60 Hz
Number Of Poles
3
Temperature Rating
-25 to 70 deg C
Trip Range
1500 to 3000 A
Type
Low Voltage
Voltage Rating
600 VAC/500 VDC
Standard & Approvals
CE Certified, CSA Certified, CCC Certified, cULus Listed, EAC Compliant, ECCN EAR99, IEC 81346-2 Q, RCM Certified, RoHS Compliant, UL Listed, VDE Certified, WEEE 2012/19/EU
Amperage Rating
300 A
Dimensions
5.4 in W x 4.3 in D x 9.8 in H
Enclosure Type
IP40
Application
Hospitals, Logistics Centers, Office Complexes, Airports, Residential Buildings, Machine Building, Industrial Parks, Presses, Wastewater Treatment Facilities, Production Lines, Production and Process Automation Industrial Applications
Trip Type
TM230 Thermal Magnetic
Interrupt Rating
25 kA at 600 V, 65 kA at 480 V, 100 kA at 240 V
EANUCC13
4042949093213
