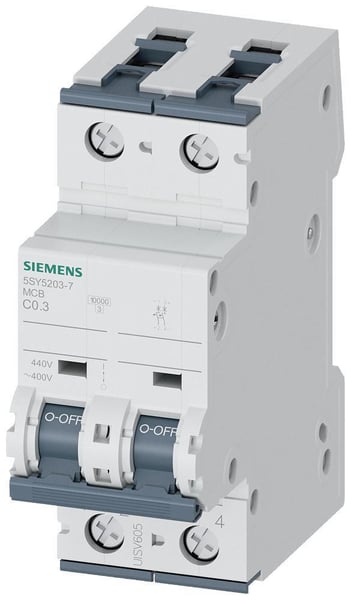

Sentron™ 5SY5203-7 Miniature Circuit Breaker, 400 VAC, 3 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Selected Sentron 5SY5203 7 1
Sentron 5SY5203 7 1

Documents

Short Description

Miniature circuit breakers are used to protect systems and installations in buildings and for industrial applications. Used in industrial applications and plant engineering, miniature circuit breakers can be supplemented with additional components, such as auxiliary switches, fault signal contacts, shunt trips, undervoltage releases, remote controlled mechanism, RC units, and arc fault detection devices. The devices are approved for worldwide use according to IEC standards for power supply systems up to 250/440 VAC. 72 VDC per pole is permitted in DC systems.

Features

  • Clear and visible conductor connection in front of the rear busbar facilitates controls
  • The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space
  • Double terminal chambers permit accommodation of two wires of different cross-sections
  • Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed
  • Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices
  • For the quick and easy mounting of auxiliary switches and fault signal contacts
  • Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools
  • Class C trip

Specification

Wire Size
14 to 4 AWG
Mounting Type
DIN Rail
Actuator Type
Handle
Temperature Rating
-25 to 55 deg C
Trip Type
Thermal Magnetic
Series
5SY
Number Of Poles
2
Interrupt Rating
10 kA
Enclosure Type
IP20/IP40
Dimensions
90 mm H x 36 mm W x 76 mm D
Frequency Rating
50/60 Hz
Trip Range
1.13 to 1.45 A
Connection Type
Screw
Amperage Rating
3 A
Voltage Rating
400 VAC
