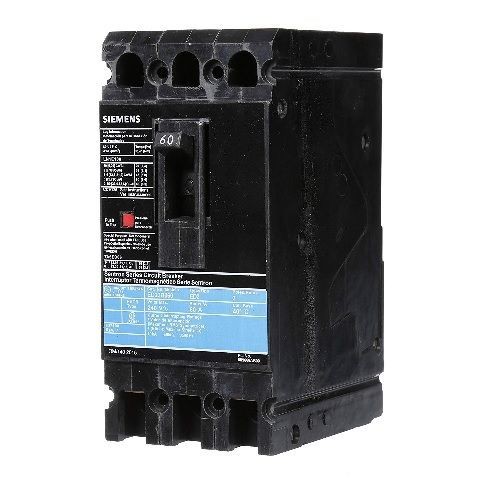

Sentron™ ED23B060L Type ED2 Low Voltage Molded Case Circuit Breaker, 240 VAC/125/250 VDC, 60 A, 10 kA, 3 Poles, Thermal Magnetic Trip

Selected Sentron™ ED23B060L Type ED2 Low Voltage Molded Case Circuit Breaker, 240 VAC/125/250 VDC, 60 A, 10 kA, 3 Poles, Thermal Magnetic Trip
Sentron™ ED23B060L Type ED2 Low Voltage Molded Case Circuit Breaker, 240 VAC/125/250 VDC, 60 A, 10 kA, 3 Poles, Thermal Magnetic Trip

Short Description

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.

Features

  • Field installable external accessories
  • Series connected short circuit ratings
  • ED frame with standard breaking capacity

Specification

Frame
ED
Frequency Rating
50/60
Interrupt Rating
10
Number Of Poles
3
Phase
3
Temperature Rating
40
Trip Type
Thermal Magnetic
Type
Type ED2 Low Voltage
Voltage Rating
240 VAC/125/250 VDC
Wire Size
10 to 1/0 AWG
Standard & Approvals
UL Listed, CSA Certified, CE Marked, RoHS Compliant, PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Amperage Rating
60 A
Dimensions
6.35 in H x 3 in W x 3.92 in D
Connection Type
Line/Load Lug
