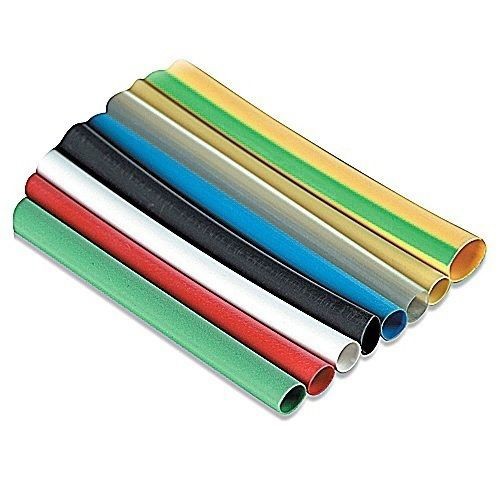

Shrink-Kon® HS16-12-4M Heat Shrink Tubing With Thermoplastic Adhesive Liner, 8.89 mm ID Expanded, 3.048 mm ID Recovered, 1.778 mm THK Wall Recovered, 48 in L, Polyolefin, Black

Selected Shrink-Kon® HS16-12-4M Heat Shrink Tubing With Thermoplastic Adhesive Liner, 8.89 mm ID Expanded, 3.048 mm ID Recovered, 1.778 mm THK Wall Recovered, 48 in L, Polyolefin, Black
Shrink-Kon® HS16-12-4M Heat Shrink Tubing With Thermoplastic Adhesive Liner, 8.89 mm ID Expanded, 3.048 mm ID Recovered, 1.778 mm THK Wall Recovered, 48 in L, Polyolefin, Black

Documents

Short Description

When it comes to moisture-proofing connections and terminations, T&B’s heat-shrinkable tubing, boots, and end caps have proven themselves over years of service to the industry. Made of thermally stabilized cross-linked polyolefin, these heat-shrinkable insulators can be used over lead, steel, aluminum, copper, standard plastic, and elastomeric insulating materials. T&B heat-shrinkable insulators are designed to be easy to use. They provide an appropriate level of insulation and abrasion protection.

Features

  • Enabling a recovered wall thickness greater than that of the cable jacket replaced
  • Withstands severe mechanical requirements of U.R.D., submersible and direct burial installations
  • Tubing, featuring an internally applied sealant, offers protection against moisture, and may be used over lead, steel, aluminum, copper, standard plastic and elastomeric insulating materials
  • High impact, abrasion, corrosion and chemical resistance
  • Thermoplastic adhesive liner provides complete environmental protection and insulation
  • 500 V/mil (20 kV/mm) dielectric strength
  • 0.1% water absorption
  • Made of Cross-Linked Polyolefin

Specification

Length
48 in
Material
Cross-Linked Polyolefin
Shrink Temperature
120 deg C
Voltage Rating
600 VAC
Color
Black
Shrink Ratio
12/31/1899 3:01:00 AM
Standard & Approvals
UL Listed, CSA Certified, ANSI, ICEA, NEMA, RoHS Compliant
Wire Size
16 to 12 AWG
Temperature Rating
-67 to 230 deg F
Series
HS
