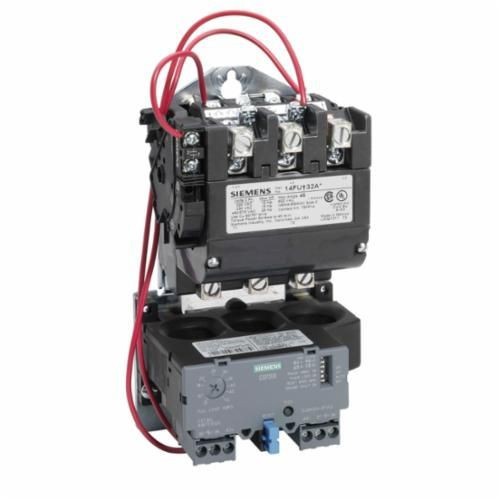

Siemens 14FUF32AF Class 14 Full Voltage Heavy Duty Motor Starter, 110 to 120 VAC V Coil, Non-Reversing/Non-Combination Action, 3 Poles, NEMA 2/Open Enclosure
Siemens 14FUF32AF Class 14 Full Voltage Heavy Duty Motor Starter, 110 to 120 VAC V Coil, Non-Reversing/Non-Combination Action, 3 Poles, NEMA 2/Open Enclosure
SKU: SIE14FUF32AF
Manufacturer Part Number: 14FUF32AF
UPC: 783087817920
Features
- Rugged industrial design, half sizes for cost and space savings, dual voltage, dual frequency coils
- Easy coil access, overload test feature, straight thru wiring
- 10 hp at 200 VAC, 15 hp at 230 VAC, 25 hp at 460/575 VAC
- Solid state or ambient compensated bimetal overload protection
- Wide range of accessories
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Motor Power | 10 hp, 15 hp, 25 hp |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -4 to 104 deg F |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Auxiliary Contact Rating | 1NO |
| Coil Voltage | 110 to 120 VAC |
| Connection Type | Thread |
| Enclosure Type | NEMA 2/Open |
| Overload Relay | Solid-State |
| Reset Type | Automatic, Manual |
| Timing | 19 to 29 ms On/10 to 24 ms Off |
| Type | Class 14 Full Voltage Heavy Duty |
| Voltage Rating | 120 VAC |
| Wattage | 8.6 W |
| Standard & Approvals | UL File No. E14900, CSA File No. LR6535 |
| Dimensions | 8.13 in H x 5.75 in W x 4 in D |
| Catalog ID | SIE14FUF32AF |
| Amperage Rating | 13 to 52 A |
| Action | Non-Reversing/Non-Combination |
