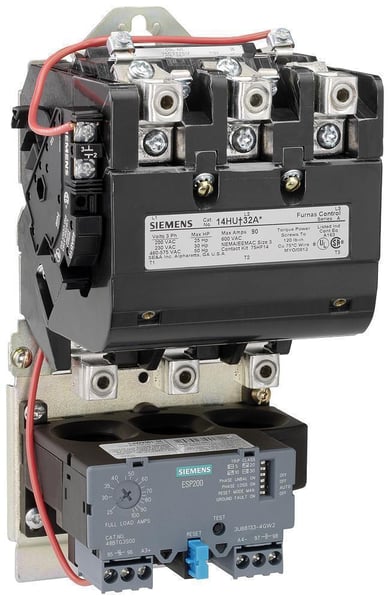

Siemens 14HUG32AA Class 14 Full Voltage Motor Starter, 110 to 120/220 to 240 VAC V Coil, Non-Reversing Action, 3 Poles, Open Enclosure
Siemens 14HUG32AA Class 14 Full Voltage Motor Starter, 110 to 120/220 to 240 VAC V Coil, Non-Reversing Action, 3 Poles, Open Enclosure
SKU: SIE14HUG32AA
Manufacturer Part Number: 14HUG32AA
UPC: 783087817968
Documents
Features
- ESP 200 SS overload, motor match half sizes, dual coils
- 25 hp at 200/208 VAC, 30 hp at 220/230 VAC, 50 hp at 460/480/575/600 VAC
- NEMA Size 3
Specification
| Coil Voltage | 110 to 120/220 to 240 VAC |
|---|---|
| Voltage Rating | 600 VAC |
| Reset Type | Automatic/Manual/Remote |
| Auxiliary Contact Rating | 1NO |
| Setting | 100 A |
| Connection Type | Screw |
| Number Of Poles | 3 |
| Overload Relay | Solid-State |
| Timing | 26 to 41 ms On/14 to 19 ms Off |
| Operating Cycles | 10000000 Cycles |
| Frequency Rating | 60 Hz |
| Wattage | 8.6 W |
| Action | Non-Reversing |
| Operating Temperature | -4 to 104 deg F |
| Amperage Rating | 90 A |
| Dimensions | 9.78 in H x 6.75 in W x 5.19 in D |
| Enclosure Type | Open |
| Motor Power | 25 hp, 30 hp, 50 hp |
| Type | Class 14 Full Voltage |
