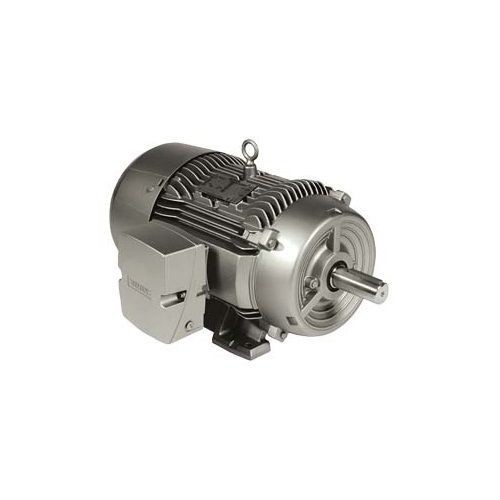

Siemens 1LE22211AB414AA3 4-Pole Continuous-Duty Low Voltage Standard Type GP100 AC Motor, TEFC/IP54/IP55 Enclosure, 2 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 145T Frame, 1800 rpm Speed, Footed/Floor Mount
Siemens 1LE22211AB414AA3 4-Pole Continuous-Duty Low Voltage Standard Type GP100 AC Motor, TEFC/IP54/IP55 Enclosure, 2 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 145T Frame, 1800 rpm Speed, Footed/Floor Mount
SKU: SIE1LE22211AB414AA3
Manufacturer Part Number: 1LE22211AB414AA3
UPC: 662643337013
Short Description
Features
- Cast iron construction for exceptional structural integrity, equipped with integrally cast feet
- Condensation drain holes are provided
- Unique frame fin design maximizes cooling
- Each rotor assembly is dynamically balanced for extended bearing life and includes a high strength carbon steel (C1045) shaft for maximum rotor performance
- Manufactured with premium electrical grade steel laminations and copper electrical magnet wire to reduce losses and improved efficiencies
- A unique stator core design lowers flux density while increasing cooling capacity
- Large conductor cross section reduces resistance and lowers stator losses
- Proprietary inverter rated NEMA class F, non-hygroscopic insulation system with class B temperature rise at 1.0 SF provides an extra margin of thermal life
- Varnish system application ensures maximum wire penetration to provide protection from moisture, corrosion and electrical surges
- Insulation system meets or exceeds NEMA mg1 2006, part 31, making all motors suitable for operation with adjustable frequency drives
- A bi-directional, non-sparking fan is locked and keyed to the shaft
- Its design reduces windage losses, improves airflow, reduces noise and provides dependable cooling
- Polycarbonate fan covers are provided on all frame sizes
- Lubricated for life (FS 140 to 400), provisions for lubrication (FS 440), oversized, complete with external bearing protection
- Specially formulated, high temperature, polyurea based grease
- Oversized cast iron construction that is larger than industry standards, diagonally split and rotatable in 90 deg increments for quick and easy connections
- Non-wicking, clearly and permanently marked leads
- Cast iron construction, polycarbonate fan, corrosion resistant hardware, epoxy enamel paint resist rust and corrosion
- Without winding protection
- RAL7030 standard stone gray paint finish
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Insulation Class | Class F |
| Material | Cast Iron |
| Mounting Type | Footed/Floor |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Application Type | Compressor Motors, General Purpose AC Motors |
| Bearing Type | Ball |
| Enclosure Type | TEFC/IP54/IP55 |
| Phase | 3 ph |
| Series | 1LE2 |
| Service Factor | 1.15 |
| Temperature Rating | -20 to 40 deg C |
| Voltage Rating | 208 to 230/460 VAC |
| Standard & Approvals | CE Certified, CSA Certified, cULus Listed, EE Certified, NEMA Premium® Standard |
| Includes | Ground Lug |
| Speed | 1800 RPM |
| Horsepower | 2 hp |
| Torque Rating | 6 lb-ft |
| Special Features | Squirrel Cage Motors |
| Shaft Size | 7/8 in Dia x 2-1/4 in L |
| Rotation | Bi-Directional |
| Dimensions | 14.4 in W x 7.5 in H |
| Catalog ID | SIE1LE22211AB414AA3 |
| Amperage Rating | 2.8 A |
| Frame | 145T |
| Application | Material Handling, Pump, Fan and Industrial Applications |
| Type | 4-Pole Continuous-Duty Low Voltage Standard Type GP100 |
