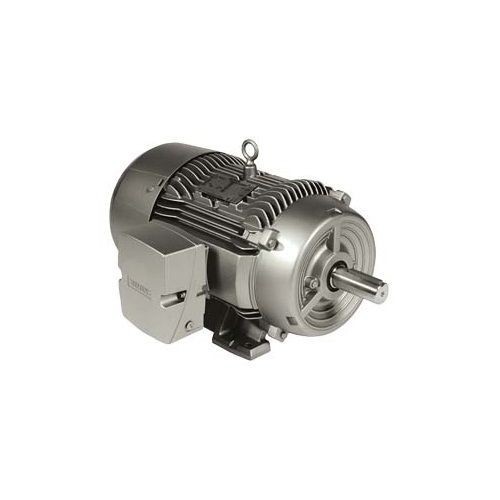

Siemens SIMOTICS 1LE22211CB314EA3 Type GP100 4-Pole Continuous-Duty NEMA Low Voltage Standard AC Motor, TEFC/IP54/IP55 Enclosure, 5 hp, 208 to 230 VAC, 460 VAC, 60 Hz, 3 Phase, 184T Frame, 1800 rpm Speed, C-Face Footed Mount
Siemens SIMOTICS 1LE22211CB314EA3 Type GP100 4-Pole Continuous-Duty NEMA Low Voltage Standard AC Motor, TEFC/IP54/IP55 Enclosure, 5 hp, 208 to 230 VAC, 460 VAC, 60 Hz, 3 Phase, 184T Frame, 1800 rpm Speed, C-Face Footed Mount
SKU: SIE1LE22211CB314EA3
Manufacturer Part Number: 1LE22211CB314EA3
UPC: 040892592764
Short Description
Features
- Without winding protection
- Cast iron construction for exceptional structural integrity, equipped with integrally cast feet
- Condensation drain holes provided
- Unique frame fin design maximizes cooling
- Each rotor assembly is dynamically balanced for extended bearing life and includes a high strength carbon steel (C1045) shaft for maximum rotor performance
- Manufactured with premium electrical grade steel laminations and copper electrical magnet wire to reduce losses and improve efficiencies
- A unique stator core design lowers flux density while increasing cooling capacity
- Large conductor cross section reduces resistance and lowers stator losses
- Proprietary inverter rated NEMA class F non-hygroscopic insulation system with class B temperature rise at 1.0SF, provides an extra margin of thermal life
- Varnish system application ensures maximum wire penetration to provide protection from moisture, corrosion and electrical surges
- Insulation system meets or exceeds NEMA MG1-2006, Part 31 making all motors suitable for operation with adjustable frequency drives
- A bi-directional, non-sparking fan is locked and keyed to the shaft
- Its design reduces windage losses, improves air flow, reduces noise and provides dependable cooling
- Polycarbonate fan covers are provided on all frame sizes
- Lubricated for life, oversized, complete with external V-ring slinger
- Specially formulated, high temperature, polyurea based grease
- Oversized cast construction that is larger than industry standards, diagonally split and rotatable in 90 deg increments for quick and easy connections
- Non-wicking, clearly and permanently marked leads
- Cast iron construction, polycarbonate fan, corrosion-resistant hardware, epoxy enamel paint resist rust and corrosion
Specification
| Frame | 184T |
|---|---|
| Frequency Rating | 60 Hz |
| Insulation Class | Class F |
| Material | Cast Iron |
| Mounting Type | C-Face Footed |
| Number of Speeds | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 6.5 A |
| Application Type | General Purpose Motor |
| Bearing Type | Ball |
| Catalog ID | SIE1LE22211CB314EA3 |
| Dimensions | 11.1 in H x 16.7 in W |
| Enclosure Type | TEFC/IP54/IP55 |
| Phase | 3 |
| Rotation | CW/CCW |
| Series | 1LE2 |
| Service Factor | 1.15 |
| Special Features | NEMA Premium® Efficiency, Squirrel Cage Rotor, Stone Gray Painted, 4:1 Constant Torque, 20:1 Variable Torque |
| Temperature Rating | -20 to 40 deg C |
| Torque Rating | 15 ft-lb |
| Type | Type GP100 4-Pole Continuous-Duty NEMA Low Voltage Standard |
| Voltage Rating | 208 to 230 VAC, 460 VAC |
| Application | Material Handling, Pump, Fan, Compressor and other Industrial Applications |
| Standard & Approvals | CE Certified, CSA Certified, cULus Recognized, EE Certified, WEEE (2012/19/EU) |
| Includes | Ground Lug |
| Speed | 1800 RPM |
| Horsepower | 5 hp |
