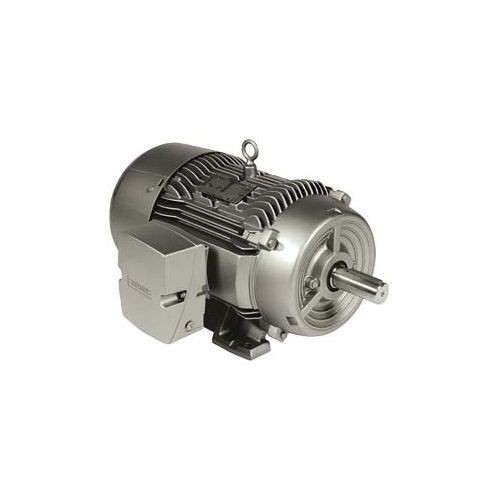

Siemens 1LE22212AB114AA3 4-Pole Continuous-Duty Low Voltage Standard Type GP100 AC Motor, TEFC/IP54/IP55 Enclosure, 7.5 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 213T Frame, 1800 rpm Speed, Footed/Floor Mount

Selected SIE1LE22212AB114AA3
SIE1LE22212AB114AA3

Documents

Short Description

GP100 general purpose TEFC motors are available in two configurations which exceed NEMA Premium® efficiency with our exclusive, leading-edge, die cast copper rotor design (143T to 256T) or meet NEMA Premium® efficiency with our die cast aluminum rotor design (143T to 449T). Either way, these motors significantly reduce operating costs and pay for themselves in a short time through energy savings. These industry workhorses are ideal for use in material handling, pump, fan, compressor and other industrial applications.

Features

  • Cast iron construction for exceptional structural integrity, equipped with integrally cast feet
  • Condensation drain holes are provided
  • Unique frame fin design maximizes cooling
  • Each rotor assembly is dynamically balanced for extended bearing life and includes a high strength carbon steel (C1045) shaft for maximum rotor performance
  • Manufactured with premium electrical grade steel laminations and copper electrical magnet wire to reduce losses and improved efficiencies
  • A unique stator core design lowers flux density while increasing cooling capacity
  • Large conductor cross section reduces resistance and lowers stator losses
  • Proprietary inverter rated NEMA class F, non-hygroscopic insulation system with class B temperature rise at 1.0 SF provides an extra margin of thermal life
  • Varnish system application ensures maximum wire penetration to provide protection from moisture, corrosion and electrical surges
  • Insulation system meets or exceeds NEMA mg1 2006, part 31, making all motors suitable for operation with adjustable frequency drives
  • A bi-directional, non-sparking fan is locked and keyed to the shaft
  • Its design reduces windage losses, improves airflow, reduces noise and provides dependable cooling
  • Polycarbonate fan covers are provided on all frame sizes
  • Lubricated for life (FS 140 to 400), provisions for lubrication (FS 440), oversized, complete with external bearing protection
  • Specially formulated, high temperature, polyurea based grease
  • Oversized cast iron construction that is larger than industry standards, diagonally split and rotatable in 90 deg increments for quick and easy connections
  • Non-wicking, clearly and permanently marked leads
  • Cast iron construction, polycarbonate fan, corrosion resistant hardware, epoxy enamel paint resist rust and corrosion
  • Without winding protection
  • RAL7030 standard stone gray paint finish

Specification

Frame
213T
Frequency Rating
60 Hz
Insulation Class
Class F
Material
Cast Iron
Mounting Type
Footed/Floor
Phase
3 ph
Rotation
Bi-Directional
Series
1LE2
Service Factor
1.15
Shaft Size
1.375 in Dia x 3.38 in L
Special Features
Squirrel Cage Motors
Temperature Rating
-20 to 40 deg C
Torque Rating
22 lb-ft
Type
4-Pole Continuous-Duty Low Voltage Standard Type GP100
Voltage Rating
208 to 230/460 VAC
Application
Material Handling, Pump, Fan and Industrial Applications
Standard & Approvals
CE Certified, CSA Certified, cULus Listed, EE Certified, NEMA Premium® Standard
Amperage Rating
9.7 A
Application Type
Compressor Motors, General Purpose AC Motors
Bearing Type
Ball
Enclosure Type
TEFC/IP54/IP55
Speed
1800 RPM
Horsepower
7.5 hp
Includes
Ground Lug and Lifting Eyebolts
Dimensions
20.7 in W x 10.66 in H
