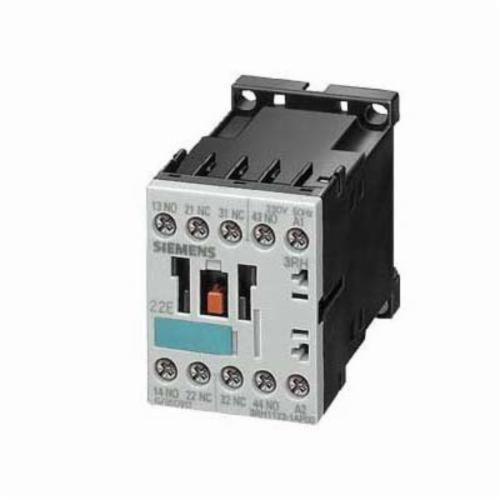

SIRIUS 3RH1140-1AK60 Contactor Control Relay, 4NO Contact, 110/120 VAC V Coil
SIRIUS 3RH1140-1AK60 Contactor Control Relay, 4NO Contact, 110/120 VAC V Coil
SKU: SIE3RH11401AK60
Manufacturer Part Number: 3RH1140-1AK60
EAN: 4011209283022
UPC: 754554416298
Short Description
Features
- The 3RH1 contactor relays are suitable for use in any climate
- The 3RH1 contactor relays have screw or cage clamp terminals
- Size S00
- 6 A/1 A at 230/690 VAC AC-15, 10 A/1 A at 24/220 VDC DC-12
- They are finger-safe according to EN 50274
- Four contacts are available in the basic unit
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Mounting Type | Snap-On |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | SIE3RH11401AK60 |
| Coil Voltage | 110/120 VAC |
| Contact Form | 4NO |
| Contact Rating | 6/1 A at 230/690 VAC, 10/1 A at 24/220 VDC |
| Dimensions | 57.5 mm H x 45 mm W x 72 mm D |
| Enclosure Type | IP20 |
| Temperature Rating | -25 to 60 deg C |
| Terminal Type | Threaded |
| Type | Contactor |
| Standard & Approvals | CCC Certified, CE Marked, CSA Certified, EAC Rated, EN 60947 Rated, IEC 60947, UL Listed |
| EANUCC13 | 4011209283022 |
