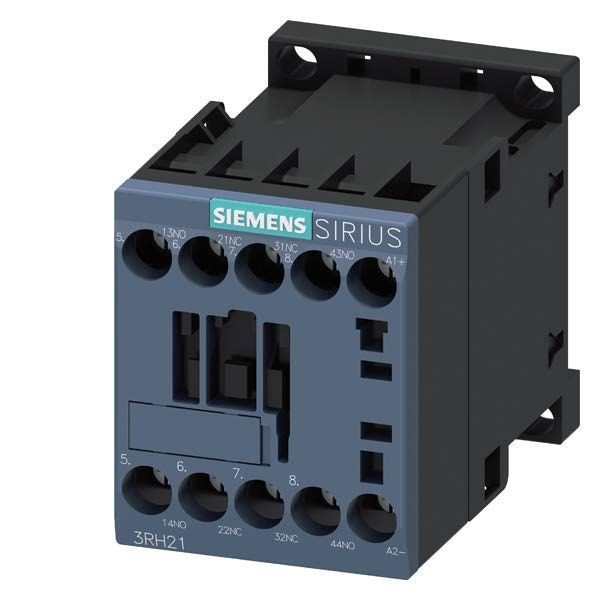

SIRIUS 3RH21221BB40 Contactor Relay, 2NO-2NC Contact, 24 VDC V Coil
SIRIUS 3RH21221BB40 Contactor Relay, 2NO-2NC Contact, 24 VDC V Coil
SKU: SIE3RH21221BB40
Manufacturer Part Number: 3RH21221BB40
EAN: 4011209786721
UPC: 662643903409
Documents
Short Description
Features
- The 3RH2 contactor relays are suitable for use in any climate
- The 3RH2 contactor relays have screw, ring terminal lug or spring-type terminals
- S00 size of contactor
- Contact rating of auxiliary contacts according to UL is A600, Q600
- They are finger safe according to EN 50274
- 10/1 A at 230/690 VAC AC-15, 10/0.15 A at 24/600 VDC DC-12
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Mounting Type | Snap-On |
| Number Of Poles | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=y9L0ZMtPwRU |
| Catalog ID | SIE3RH21221BB40 |
| Coil Voltage | 24 VDC |
| Contact Form | 2NO-2NC |
| Contact Rating | 10/1 A at 230/690 VAC, 10/0.15 A at 24/600 VDC |
| Dimensions | 57.5 mm H x 45 mm W x 73 mm D |
| Enclosure Type | IP20 |
| Temperature Rating | -25 to 55 deg C |
| Terminal Type | Screw |
| Standard & Approvals | CE, CCC Certified, CSA Certified, EAC Standard, EN 60947-1, EN 60947-5-1, IEC 60947-1, IEC 60947-5-1, UL Listed |
| EANUCC13 | 4011209786721 |
