SIRIUS 3RH21311AK60 Contactor Relay, 3NO-1NC 3 Form A/1 Form B Contact, 110/120 VAC V Coil

Selected Siemens 3RH21311AB00

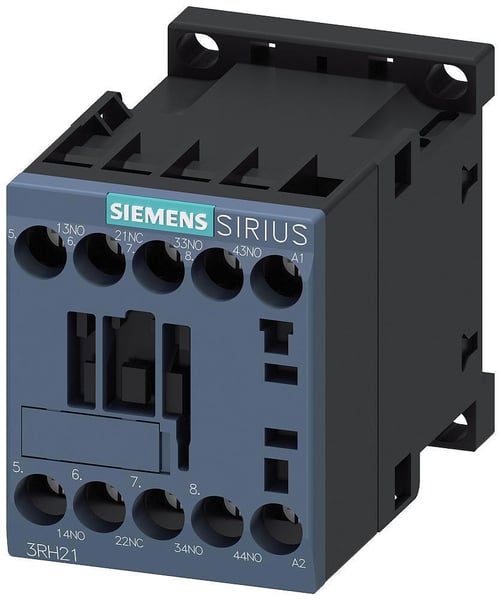

Siemens 3RH21311AB00

Documents

Short Description

The SIRIUS generation of controls is a complete, modular system family, logically designed right down to the last detail, from the basic units to the accessories.

Features

  • The 3RH2 contactor relays are suitable for use in any climate
  • The 3RH2 contactor relays have screw, ring terminal lug or spring-type terminals
  • S00 size of contactor
  • Contact rating of auxiliary contacts according to UL is A600, Q600
  • They are finger safe according to EN 50274
  • 10/1 A at 230/690 VAC AC-15, 10/0.15 A at 24/600 VDC DC-12

Specification

Frequency Rating
50/60 Hz
Contact Rating
10/1 A at 230/690 VAC, 10/0.15 A at 24/600 VDC
Mounting Type
Snap-On
Temperature Rating
-25 to 60 deg C
Terminal Type
Screw
Number Of Poles
4
Contact Form
3NO-1NC 3 Form A/1 Form B
Enclosure Type
IP20
Dimensions
57.5 mm H x 45 mm W x 73 mm D
Coil Voltage
110/120 VAC
