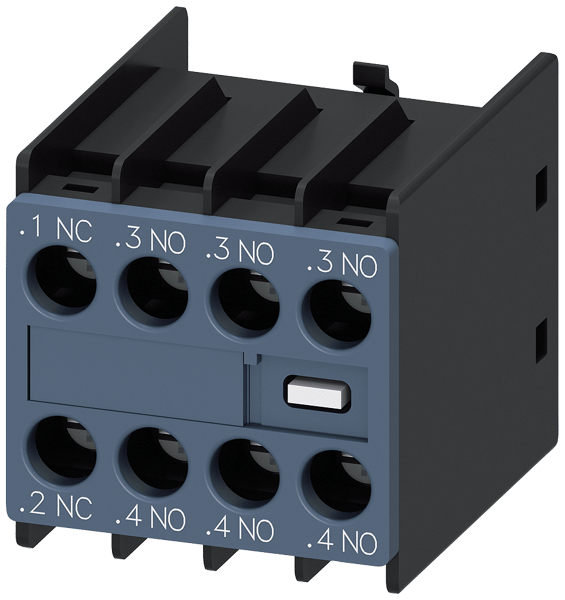

SIRIUS 3RH29111HA31 Auxiliary Switch Block, 690/600 VAC/VDC, 1/0.26 A, 4 Contacts
SIRIUS 3RH29111HA31 Auxiliary Switch Block, 690/600 VAC/VDC, 1/0.26 A, 4 Contacts
SKU: SIE3RH29111HA31
Manufacturer Part Number: 3RH29111HA31
EAN: 4011209829350
UPC: 662643910131
Documents
Features
- Screw terminal of 0.1/0.2, 0.3/0.4, 0.3/0.4, 0.3/0.4
- IP20 degree of protection
- 6 A/1 A at 24/690 VAC AC-15, 10 A/0.26 A at 24/600 VDC DC-13
- 3NO-1NC contact configuration
Specification
| Suitable For Use With | 3RT2 S00, S0 Contactor |
|---|---|
| Voltage Rating | 690/600 VAC/VDC |
| Standard & Approvals | CCC Certified, CSA Certified, CE Certified, UL Listed, EAC Certified |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 1/0.26 A |
| Catalog ID | SIE3RH29111HA31 |
| Dimensions | 37.5 mm H x 36 mm W x 43.7 mm D |
| Environmental Conditions | -55 to 80 deg C |
| Mounting Type | Snap-On |
| Number of Contacts | 4 |
| Operating Cycles | 200000 Cycles |
| Operating Temperature | -25 to 60 deg C |
| EANUCC13 | 4011209829350 |
