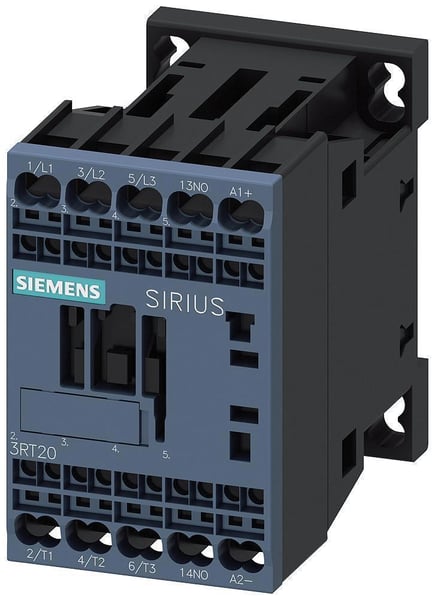

Siemens SIRIUS 3RT20162BB41 Power Contactor, 24 VDC V Coil, 9 A, 3NO Contact, 3 Poles
Siemens SIRIUS 3RT20162BB41 Power Contactor, 24 VDC V Coil, 9 A, 3NO Contact, 3 Poles
SKU: SIE3RT20162BB41
Manufacturer Part Number: 3RT20162BB41
EAN: 4011209785366
UPC: 662643908237
Documents
Features
- These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
Specification
| Dimensions | 70 mm H x 45 mm W x 73 mm D |
|---|---|
| Size | Size S00 |
| Terminal Type | Spring Loaded |
| Number of Auxiliary Contacts | 1 |
| Operating Temperature | -25 to 60 deg C |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Coil Power Rating | 4 W Closing/Holding |
| Enclosure Type | IP20 |
| Coil Voltage | 24 VDC |
| Contact Configuration | 3NO |
| Maximum Load Current | 9 A |
| Wattage | 4 kW |
| Number Of Poles | 3 |
| Operating Cycles | 30000000 Cycles |
