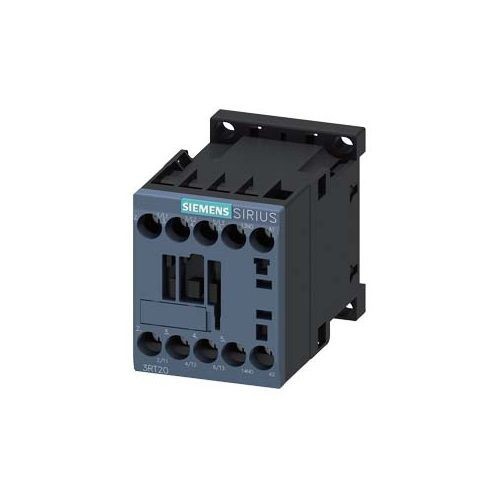

Siemens SIRIUS 3RT20171BB41 Power Contactor, 24 VDC V Coil, 12 A, 1NO Contact, 3 Poles
Siemens SIRIUS 3RT20171BB41 Power Contactor, 24 VDC V Coil, 12 A, 1NO Contact, 3 Poles
SKU: SIE3RT20171BB41
Manufacturer Part Number: 3RT20171BB41
EAN: 4011209784024
UPC: 662643911114
Features
- These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
- 3-phase
Specification
| Number Of Poles | 3 |
|---|---|
| Operating Cycles | 30000000 Cycles |
| Operating Temperature | -25 to 60 deg C |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=y9L0ZMtPwRU |
| Coil Voltage | 24 VDC |
| Contact Configuration | 1NO |
| Contact Rating | 12 A at 400 VAC |
| Enclosure Type | IP20 |
| Terminal Type | Screw |
| Wattage | 5.5 kW |
| Application | Switching Motors Applications |
| Standard & Approvals | CCC Certified, CSA Certified, CE Certified, UL Listed, EAC Approved |
| Terminal | Screw |
| Size | Size S00 |
| Dimensions | 57.5 mm H x 45 mm W x 73 mm D |
| Coil Power Rating | 4 W Closing/Holding |
| Catalog ID | SIE3RT20171BB41 |
| Number of Auxiliary Contacts | 1 |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Maximum Load Current | 12/31/1899 12:00:00 AM |
| EANUCC13 | 4011209784024 |
