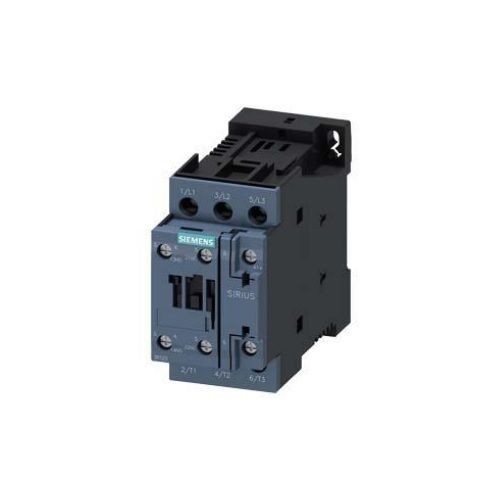

Siemens SIRIUS 3RT20251BB40 Power Contactor, 24 VDC V Coil, 17 A, 3NO Contact, 3 Poles
Siemens SIRIUS 3RT20251BB40 Power Contactor, 24 VDC V Coil, 17 A, 3NO Contact, 3 Poles
SKU: SIE3RT20251BB40
Manufacturer Part Number: 3RT20251BB40
EAN: 4011209832459
UPC: 662643914344
Features
- These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
Specification
| Number of Auxiliary Contacts | 2 |
|---|---|
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -25 to 60 deg C |
| Size | Size S0 |
| Terminal Type | Screw |
| Application | Switching Motors Applications |
| Standard & Approvals | CCC Certified, CSA Certified, CE Certified, C-Tick Approved, VDE Approved, UL Listed |
| Dimensions | 85 mm H x 45 mm W x 107 mm D |
| Coil Voltage | 24 VDC |
| Contact Configuration | 3NO |
| Enclosure Type | IP20 |
| Wattage | 7.5 kW |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Maximum Load Current | 17 A |
| EANUCC13 | 4011209832459 |
| Coil Power Rating | 5.9 W Closing/Holding |
