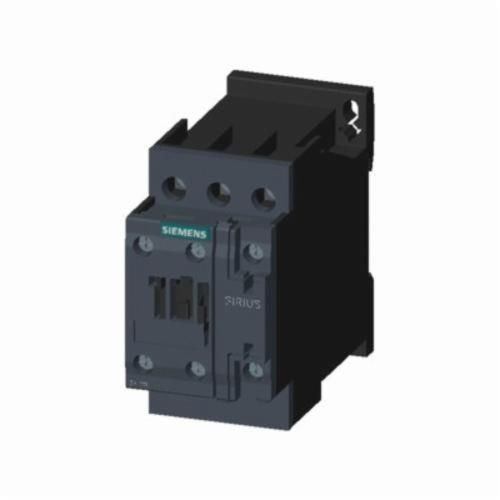

Siemens SIRIUS 3RT20261AK60 Power Contactor, 110/120 VAC V Coil, 25 A, 1NC-1NO Contact, 3 Poles
Siemens SIRIUS 3RT20261AK60 Power Contactor, 110/120 VAC V Coil, 25 A, 1NC-1NO Contact, 3 Poles
SKU: SIE3RT20261AK60
Manufacturer Part Number: 3RT20261AK60
EAN: 4011209832923
UPC: 040892547597
Documents
Features
- These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
- 3-phase
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Maximum Load Current | 25 A |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | -25 to 60 deg C |
| Power Factor | 0.72/0.74 Closing, 0.25/0.28 Holding |
| Size | Size S0 |
| Terminal | Screw |
| Terminal Type | Screw |
| Wattage | 11 kW |
| Application | Switching Motors Applications |
| Standard & Approvals | C-Tick Approved, VDE Approved, CCC Certified, CSA Certified, CE Certified, UL Listed, ROSTEST |
| Dimensions | 85 mm H x 45 mm W x 97 mm D |
| Coil Power Rating | 81/79 VA Pickup, 10.5/8.5 VA Holding |
| Coil Voltage | 110/120 VAC |
| Contact Configuration | 1NC-1NO |
| Contact Rating | 25 A at 400 VAC |
| EANUCC13 | 4011209832923 |
| Enclosure Type | IP20 |
