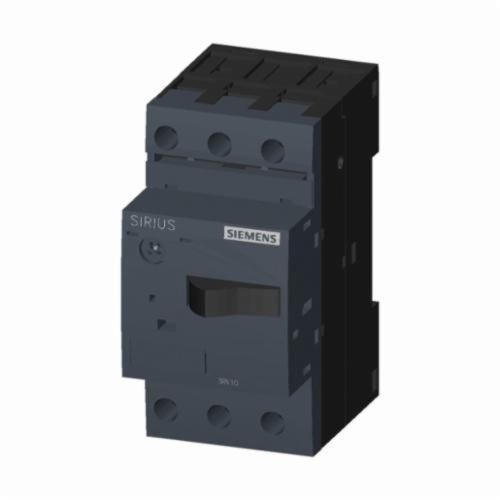

Siemens 3RV1011-1JA10 Motor Protection Circuit Breaker, 690 VAC, 7 to 10 A, 2 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Selected 3RV1011-1JA10Siemens 3RV1011-1BA10 Motor Protection Circuit Breaker, 690 VAC, 1.2 to 2 A, 2 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
3RV1011-1JA10Siemens 3RV1011-1BA10 Motor Protection Circuit Breaker, 690 VAC, 1.2 to 2 A, 2 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Documents

Short Description

3RV1 motor starter protectors are compact, current limiting motor starter protectors which are optimized for load feeders. The motor starter protectors are used for switching and protecting 3-phase induction motors of up to 45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Features

  • High short circuit breaking capacity in the feeder
  • Compact design
  • Thermal overload release
  • Standard switching capacity
  • 35 mm standard mounting rail
  • -50 to 80 deg C environmental condition
  • Class 10 trip
  • 100000 cycles switching

Specification

Frame
3RV1/S00
Frequency Rating
50/60 Hz
Interrupt Rating
2 kA
Mounting Type
DIN Rail
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
7 to 10 A
Connection Type
Screw
Enclosure Type
IP20
Phase
3
Power Rating
7.5 kW
Temperature Rating
-20 to 60 deg C
Trip Type
Thermal/Magnetic
Voltage Rating
690 VAC
Application
For motor protection and system protection
Standard & Approvals
CE Certified, CCC Certified, CSA Certified, IEC Certified, UL File No. E47705
Dimensions
90 mm H x 45 mm W x 81 mm D
Catalog ID
SIE3RV10111JA10
EANUCC13
4011209263697
