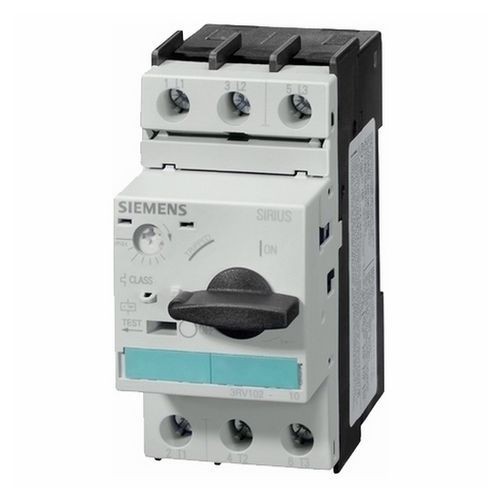

Siemens 3RV1021-4BA10 Motor Protection Circuit Breaker, 690 VAC/VDC, 20 A, 50 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Selected 3RV1021-4CA10Siemens 3RV1021-1CA10 Motor Protection Circuit Breaker, 690 VAC/VDC, 2.5 A, 100 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
3RV1021-4CA10Siemens 3RV1021-1CA10 Motor Protection Circuit Breaker, 690 VAC/VDC, 2.5 A, 100 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Documents

Short Description

3RV1 motor starter protectors are compact, current limiting motor starter protectors which are optimized for load feeders. The motor starter protectors are used for switching and protecting 3-phase induction motors of up to 45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Features

  • On/off rotary handle with lockout and visible trip indication
  • Adjustment dial for setting to motor FLA
  • Class 10 overload trip characteristics
  • Short circuit trip at 12 times the maximum setting of the FLA adjustment dial
  • 14 to 20 A thermal overload release
  • 100000 cycles switching
  • 35 mm standard mounting rail

Specification

Frame
S0
Frequency Rating
50 to 60 Hz
Interrupt Rating
50 kA
Mounting Type
DIN Rail
Number Of Poles
3
Phase
3
Power Rating
7.5 kW
Series
3RV1
Temperature Rating
-20 to 60 deg F
Trip Type
Thermal/Magnetic
Voltage Rating
690 VAC/VDC
Application
For motor protection and system protection
Standard & Approvals
UL Listed, CE Certified, CCC Certified, CSA Certified, IEC Certified
Amperage Rating
20 A
Dimensions
97 mm H x 45 mm W x 96 mm D
Actuator Type
Rotary Handle
Connection Type
Screw
EANUCC13
4011209281219
Enclosure Type
IP20
