Siemens 3RV1611-1DG14 Motor Protection Circuit Breaker, 400 VAC, 3 A, 50 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Selected Siemens 3RV1611 1CG14

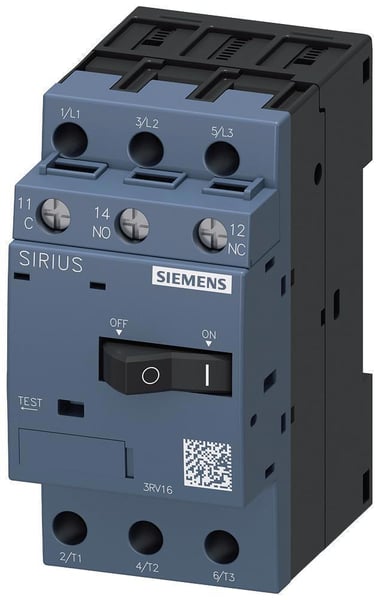

Siemens 3RV1611 1CG14

Documents

Short Description

3RV1 motor starter protectors are compact, current limiting motor starter protectors which are optimized for load feeders. The motor starter protectors are used for switching and protecting 3-phase induction motors of up to 45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Features

  • High short circuit breaking capacity in the feeder
  • Compact design
  • Thermal overload release
  • 35 mm standard mounting rail
  • Class 10 trip
  • (2) 18 to 2 AWG
  • -50 to 80 deg C environmental condition
  • 100000 cycles switching
  • With transverse auxiliary switch

Specification

Mounting Type
DIN Rail
Interrupt Rating
50 kA
Frame
3RV1/S00
Number Of Poles
3
Amperage Rating
3 A
Wire Size
18 to 2 AWG
Auxiliary Contact Rating
1CO
Connection Type
Screw
Trip Type
Thermal Magnetic
Temperature Rating
-20 to 60 deg C
Frequency Rating
50/60 Hz
Voltage Rating
400 VAC
Enclosure Type
IP20
Dimensions
90 mm H x 45 mm W x 75 mm D
