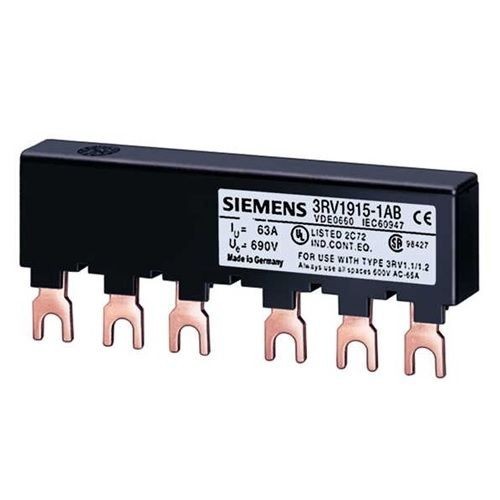

Siemens SIRIUS 3RV1915-1AB Line Side Feeder Busbar, For Use With 3RV2 Motor Starter Protector

Selected Siemens SIRIUS 3RV1915-1AB Line Side Feeder Busbar, For Use With 3RV2 Motor Starter Protector
Siemens SIRIUS 3RV1915-1AB Line Side Feeder Busbar, For Use With 3RV2 Motor Starter Protector

Documents

Short Description

Three phase busbar systems provide an easy, time saving and clearly arranged means of feeding 3RV1 motor starter protectors/circuit breakers with screw terminals. Different versions are available for size S2 and can be used for the various different types of motor starter protectors/circuit breakers. The 3RV1915 three phase busbars are not suitable for 3RV11 motor starter protectors for motor protection with overload relay function. The busbars are suitable for between two and four circuit breakers/motor starter protectors. However, any kind of extension is possible by clamping the tags of an additional busbar (rotated by 180 deg) underneath the terminals of the respective last motor starter protector/circuit breaker. The three phase busbar systems are finger safe. They are designed for any short circuit stress which can occur at the output side of connected motor starter protectors/circuit breakers.

Features

  • For feeding several motor starter protectors with screw terminals
  • Mounted side by side on standard mounting rails
  • With touch protection
  • S00 and S0 size
  • 45 mm modular spacing
  • For 2 circuit breakers

Specification

Suitable For Use With
3RV2 Motor Starter Protector
Type
Line Side
EANUCC13
4011209504615
Bar Width
34.2 mm
Bar Thickness
13.5 mm
