Siemens SIRIUS 3RV20111AA10 Type 3RV2 Motor Protection Circuit Breaker, 690 VAC, 1.1 to 1.6 A, 100 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

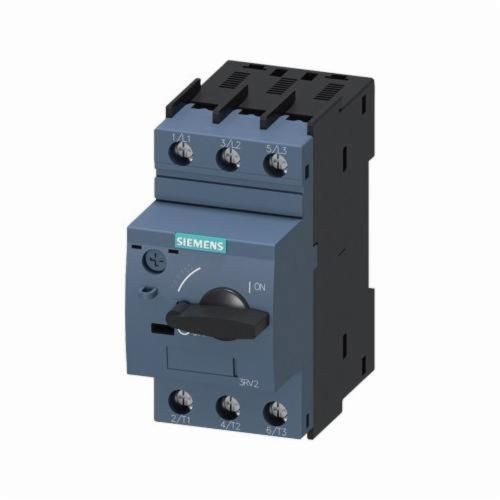

Selected 3RV20111EA10Siemens SIRIUS 3RV20111HA10 Type 3RV2 Motor Protection Circuit Breaker, 690 VAC, 5.5 to 8 A, 4 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
3RV20111EA10Siemens SIRIUS 3RV20111HA10 Type 3RV2 Motor Protection Circuit Breaker, 690 VAC, 5.5 to 8 A, 4 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Documents

Short Description

The new SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three phase motors of up to 18.5 kW at 400 VAC and for other loads with rated currents of up to 40 A.

Features

  • Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
  • Standard switch capacity
  • (2) 18 to 14 AWG, (2) 12 AWG
  • -50 to 80 deg C environmental condition
  • Class 10 trip
  • 100000 cycles switching
  • MSPs are UL approved as self protected combination motor controllers

Specification

Frame
S00
Frequency Rating
50/60 Hz
Interrupt Rating
100 kA
Mounting Type
DIN Rail
Number Of Poles
3
Phase
3
Power Rating
0.55 kW
Temperature Rating
-20 to 60 deg C
Trip Type
Thermal/Magnetic
Type
Type 3RV2
Voltage Rating
690 VAC
Wire Size
18 to 14 AWG, 12 AWG
Application
For manual motor controller and system protection
Standard & Approvals
CE Certified, CCC Certified, CSA Certified, UL Listed
Amperage Rating
1.1 to 1.6 A
Dimensions
97 mm H x 45 mm W x 96 mm D
Connection Type
Screw
EANUCC13
4011209712416
Enclosure Type
IP20
