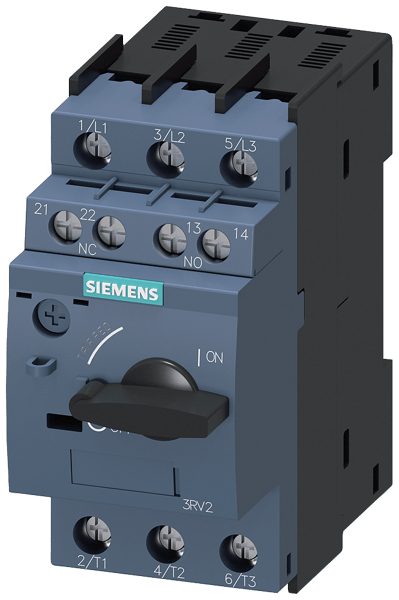

Siemens 3RV20111BA15 Motor Protection Circuit Breaker With 1NO-1NC Transverse Auxiliary Switch, 690 VAC, 2 A, 10 kA Interrupt, 3 Poles, Magnetic Trip

Selected 3RV20111FA15Siemens 3RV20111BA15 Motor Protection Circuit Breaker With 1NO-1NC Transverse Auxiliary Switch, 690 VAC, 2 A, 10 kA Interrupt, 3 Poles, Magnetic Trip
3RV20111FA15Siemens 3RV20111BA15 Motor Protection Circuit Breaker With 1NO-1NC Transverse Auxiliary Switch, 690 VAC, 2 A, 10 kA Interrupt, 3 Poles, Magnetic Trip

Documents

Short Description

The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Features

  • Class 10 trip

Specification

Power Rating
1.1 kW
Series
3RV2
Temperature Rating
-20 to 60 deg C
Trip Type
Magnetic
Voltage Rating
690 VAC
Wire Size
18 to 14 AWG
Application
Motor and System Protection Applications
Standard & Approvals
CSA Certified, CCC Certified, CE Certified, IEC Certified, UL Listed
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=n2AKmVUVH7Y
Auxiliary Contact Rating
1NO-1NC
Catalog ID
SIE3RV20111BA15
Connection Type
Screw
Dimensions
97 mm H x 45 mm W x 96 mm D
Enclosure Type
IP20
Frame
S00
Frequency Rating
50 to 60 Hz
Interrupt Rating
10 kA
Mounting Type
DIN Rail
Number Of Poles
3
Phase
3
EANUCC13
4011209841123
Amperage Rating
2 A
