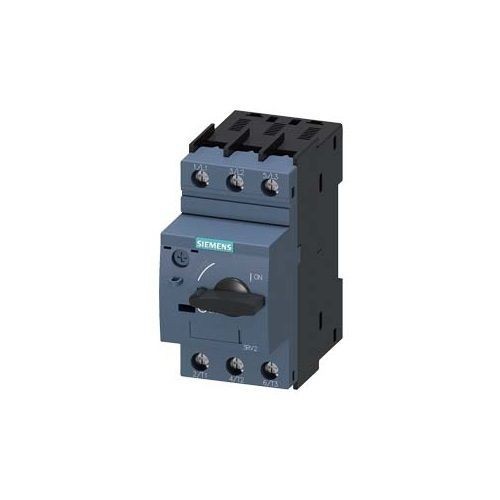

Siemens SIRIUS 3RV20211KA10 Type 3RV2 Motor Protection Circuit Breaker, 690 VAC, 9 to 12.5 A, 6 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Selected 3RV20211KA10Siemens SIRIUS 3RV20211KA10 Type 3RV2 Motor Protection Circuit Breaker, 690 VAC, 9 to 12.5 A, 6 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
3RV20211KA10Siemens SIRIUS 3RV20211KA10 Type 3RV2 Motor Protection Circuit Breaker, 690 VAC, 9 to 12.5 A, 6 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Short Description

The circuit breakers are suitable for side by side mounting up to 60 deg C. In addition to the usual closed/open circuit breaker positions the tripped position is also indicated. SIRIUS circuit breakers can be connected easily and without any wiring to the sirius contactors and soft starters through a link module. The clear, structured range is electrically, mechanically and optically harmonized to the other families of SIRIUS devices - contactors, soft starters and overload relays. Furthermore, the four sizes cover a current range up to 100 A. This corresponds to a power range up to 45 kW at 400 VAC.

Features

  • S00 and S0 size
  • 20/55/100 kA short circuit breaking capacity Icu at 400 VAC
  • MSP™ are UL approved as self protected combination motor controllers

Specification

Frequency Rating
50/60 Hz
Interrupt Rating
6 kA
Mounting Type
Snap-On/DIN Rail
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=5Oq25B99HBo
Amperage Rating
9 to 12.5 A
Catalog ID
SIE3RV20211KA10
Connection Type
Screw
Dimensions
97 mm H x 45 mm W x 96 mm D
Enclosure Type
IP20
Phase
3
Power Rating
7500 W
Temperature Rating
-20 to 60 deg C
Trip Type
Thermal/Magnetic
Type
Type 3RV2
Voltage Rating
690 VAC
Application
For manual motor controller and system protection
Standard & Approvals
CE Marked, CSA Certified, CCC Marked, EAC Standard, UL Listed
EANUCC13
4011209902138
